Product Description

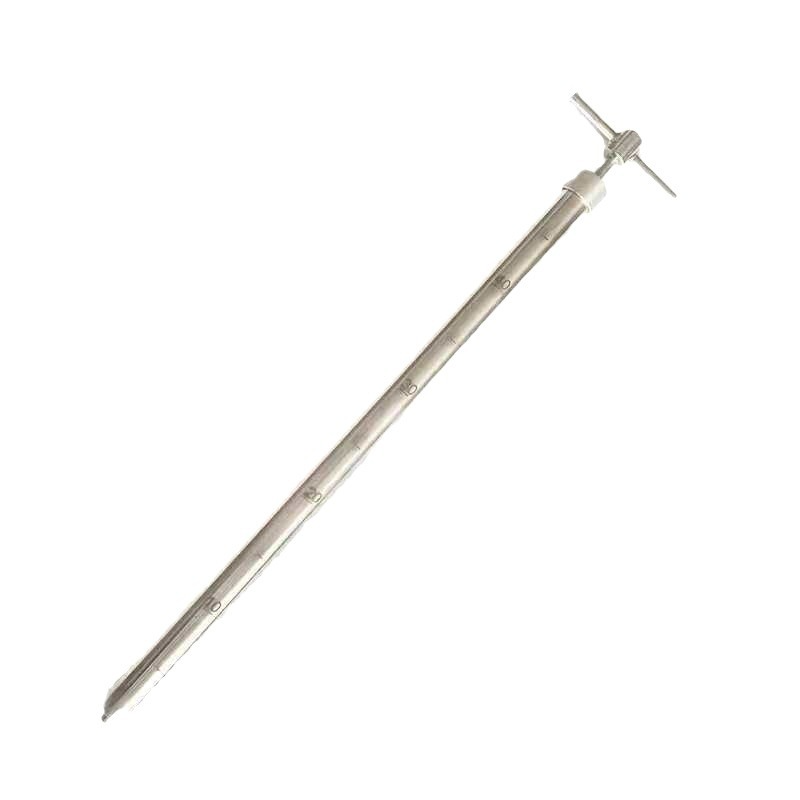

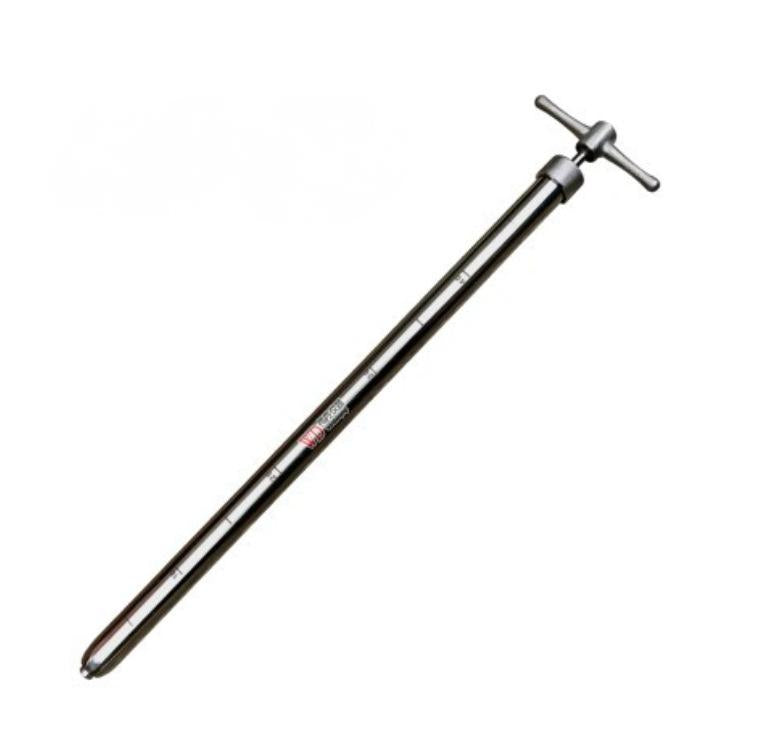

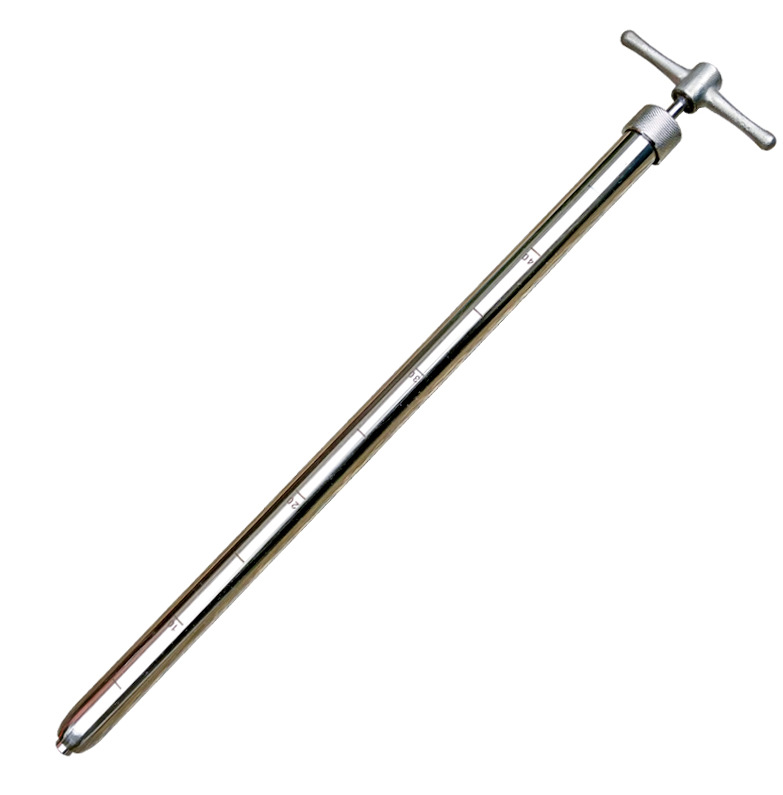

This plunger-type liquid sampler is manufactured entirely from food-grade 304 or 316 stainless steel. Wall thickness 1.5 mm, outer diameter 25 mm, inner diameter 22 mm, and bottom orifice diameter 6 mm. Lengths and capacities can be customized upon request.
Compared with traditional glass samplers, the stainless-steel structure is more robust and durable. It is suitable for sampling hot, viscous, deep, or hazardous liquids, with excellent acid/alkali resistance and corrosion resistance, and is shatterproof for extended service life.
Applications
Chemicals, Pharmaceuticals, Cosmetics, Food & Beverage, Petroleum, Environmental Protection, Water Treatment, Coatings and other industrial liquid sampling operations.
Common Standards
-
Material conforms to ASTM A240 / GB4237
-
Structure in reference to ISO 5555 “Liquid Samplers” or EPA sampling guidelines
-
Optional surface finishes: electropolished, brushed, or mirror finish
Specifications Table
| Length (m) | Capacity (ml)* | Material | Wall Thickness (mm) | Outer Diameter (mm) | Inner Diameter (mm) | Bottom Orifice (mm) | Surface Finish |
|---|---|---|---|---|---|---|---|
| 0.5 | 180 | 304/316 SS | 1.5 | 25 | 22 | 6 | Brushed/Mirror |
| 0.8 | 250 | 304/316 SS | 1.5 | 25 | 22 | 6 | Brushed/Mirror |
| 1.0 | 360 | 304/316 SS | 1.5 | 25 | 22 | 6 | Brushed/Mirror |
| 1.5 | 530 | 304/316 SS | 1.5 | 25 | 22 | 6 | Brushed/Mirror |
| 2.0 | 700 (approx.) | 304/316 SS | 1.5 | 25 | 22 | 6 | Brushed/Mirror |
| 2.5 (custom) | 880 (approx.) | 304/316 SS | 1.5 | 25 | 22 | 6 | Brushed/Mirror |
| 3.0 (custom) | 1050 (approx.) | 304/316 SS | 1.5 | 25 | 22 | 6 | Brushed/Mirror |
Capacity based on water samples. Length, volume, bottom orifice size and finish can be customized.
Features
-
Full 304/316 stainless steel construction for corrosion and acid/alkali resistance
-

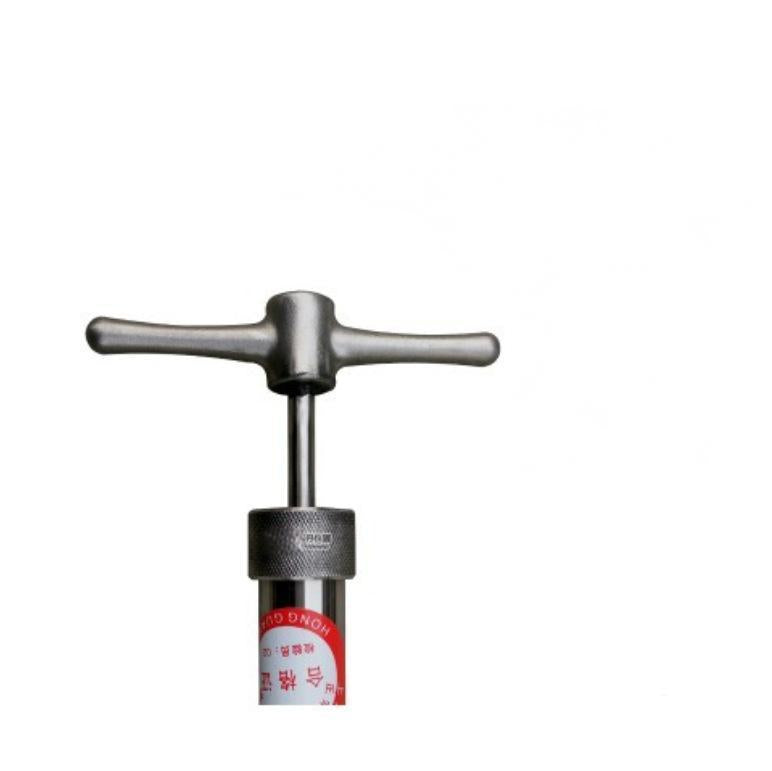

Plunger-type design for easy, safe operation
-
Ideal for sampling hot, viscous, deep, or hazardous liquids
-
Impact-resistant and shatterproof for longer service life
-
Customizable length, volume, orifice size and surface finish
-
Optional extended handle or anti-slip grip
-
CNC precision machining with dead-angle-free welding for easy cleaning
