Perforated Plate Sieves | Precision Metal Sieving Solutions
Model Range: ⌀200mm / ⌀300mm / ⌀450mm
Material: Stainless Steel / Galvanized Steel / Mild Steel
Hole Type: Round / Square / Slotted
Standards: ISO 3310-2, DIN 24041
Customization Available
Product Overview

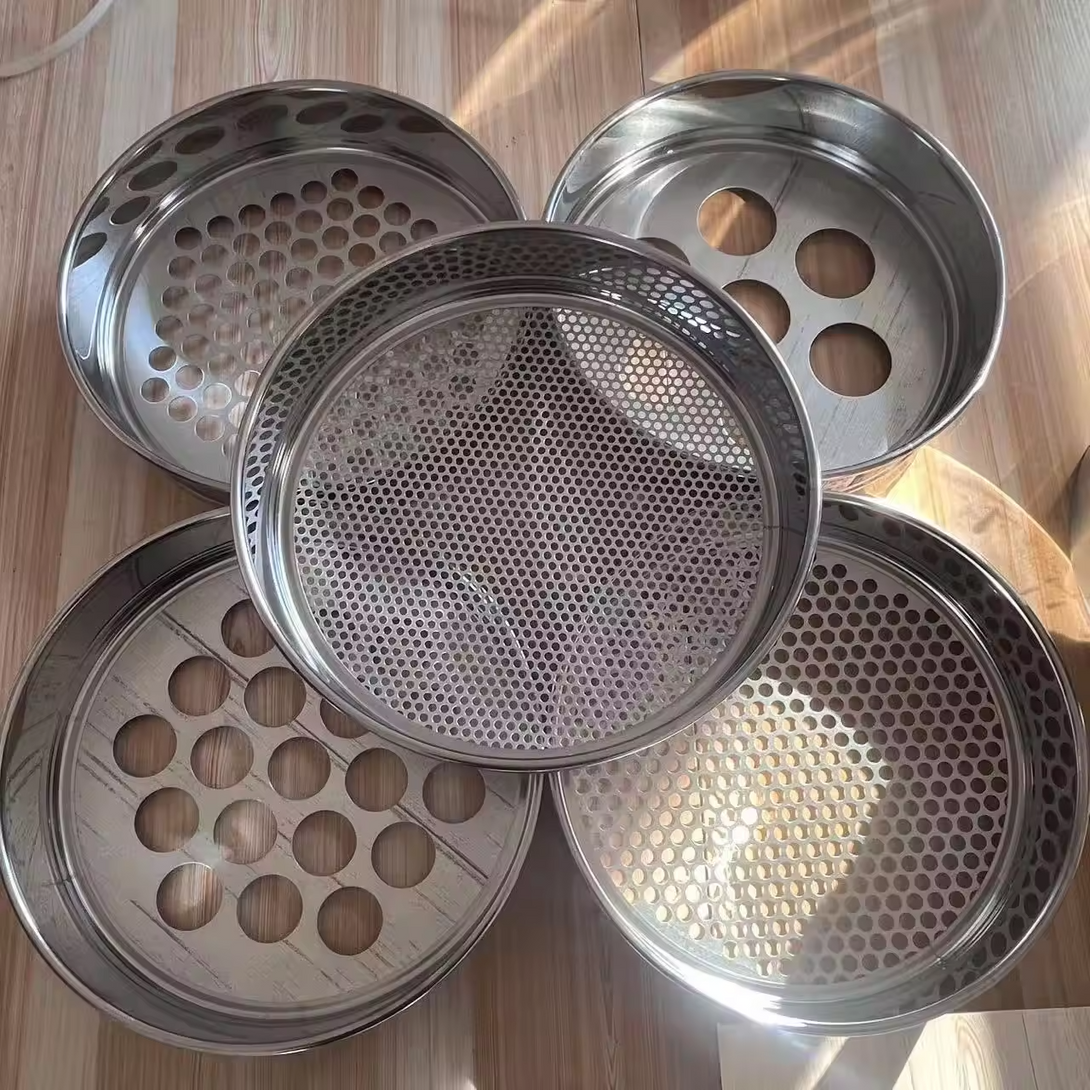

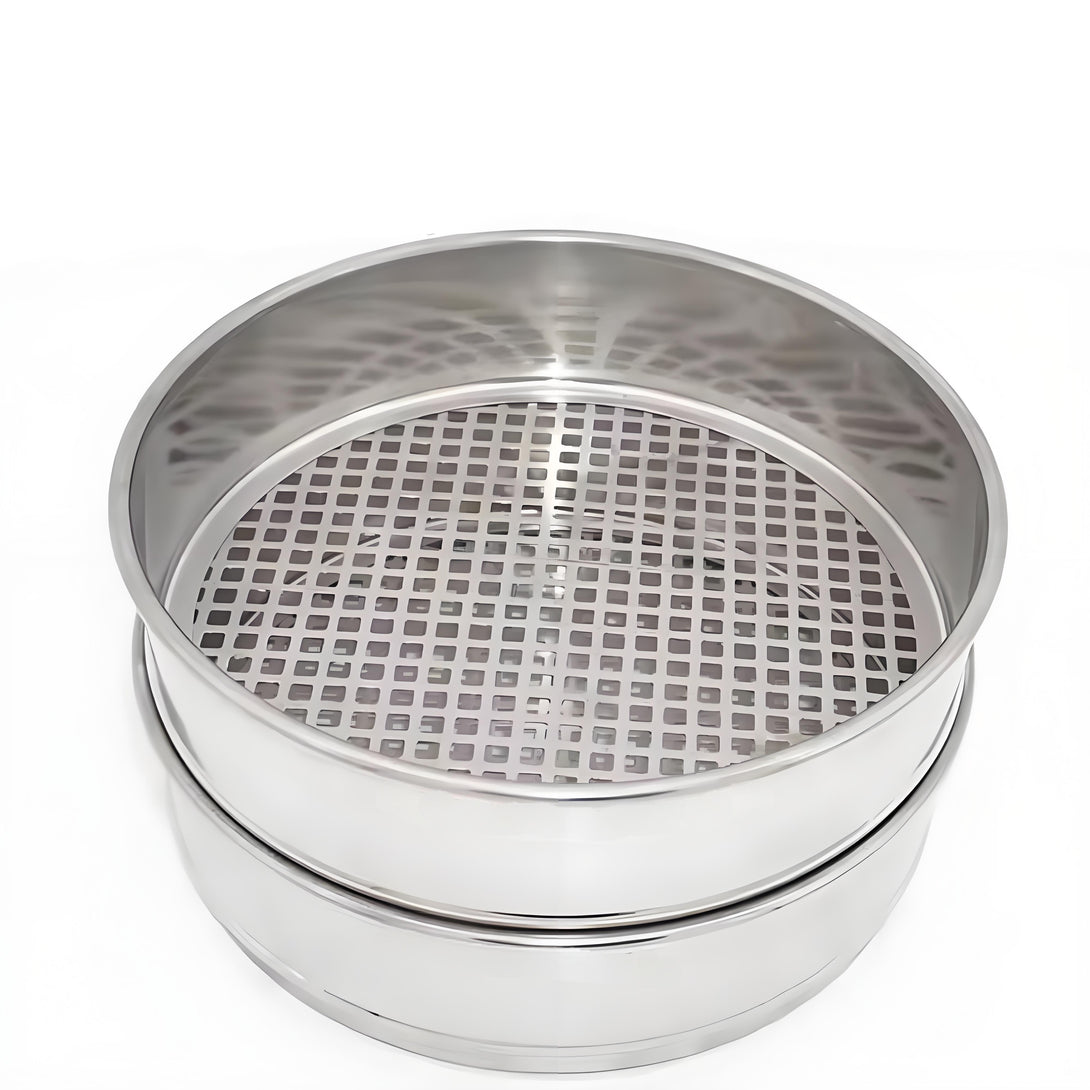

Our Perforated Plate Sieves are designed for precision particle size analysis and grading of larger, bulkier, or irregular materials. Unlike woven wire sieves, the perforated plate structure offers greater durability and rigidity, making it ideal for applications that require consistent performance and long service life.
Whether you're testing aggregates, grains, pellets, or recycled materials, our sieves ensure accurate and repeatable results in compliance with international standards.
Key Features
-
Robust Construction: Made from heavy-duty stainless or mild steel for long-lasting durability
-
High Accuracy: Precision-cut holes ensure consistent particle separation
-

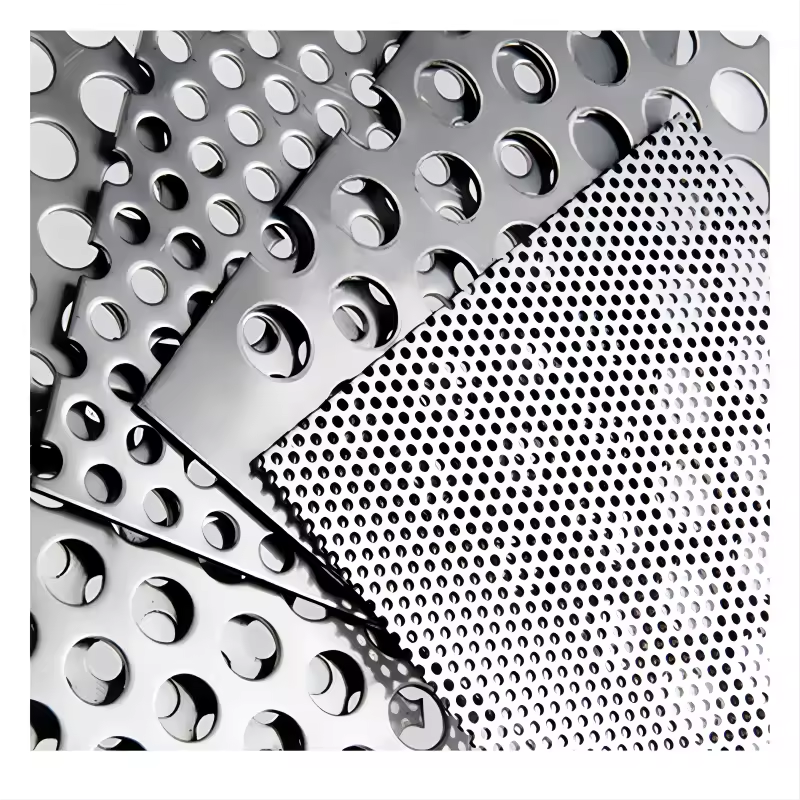

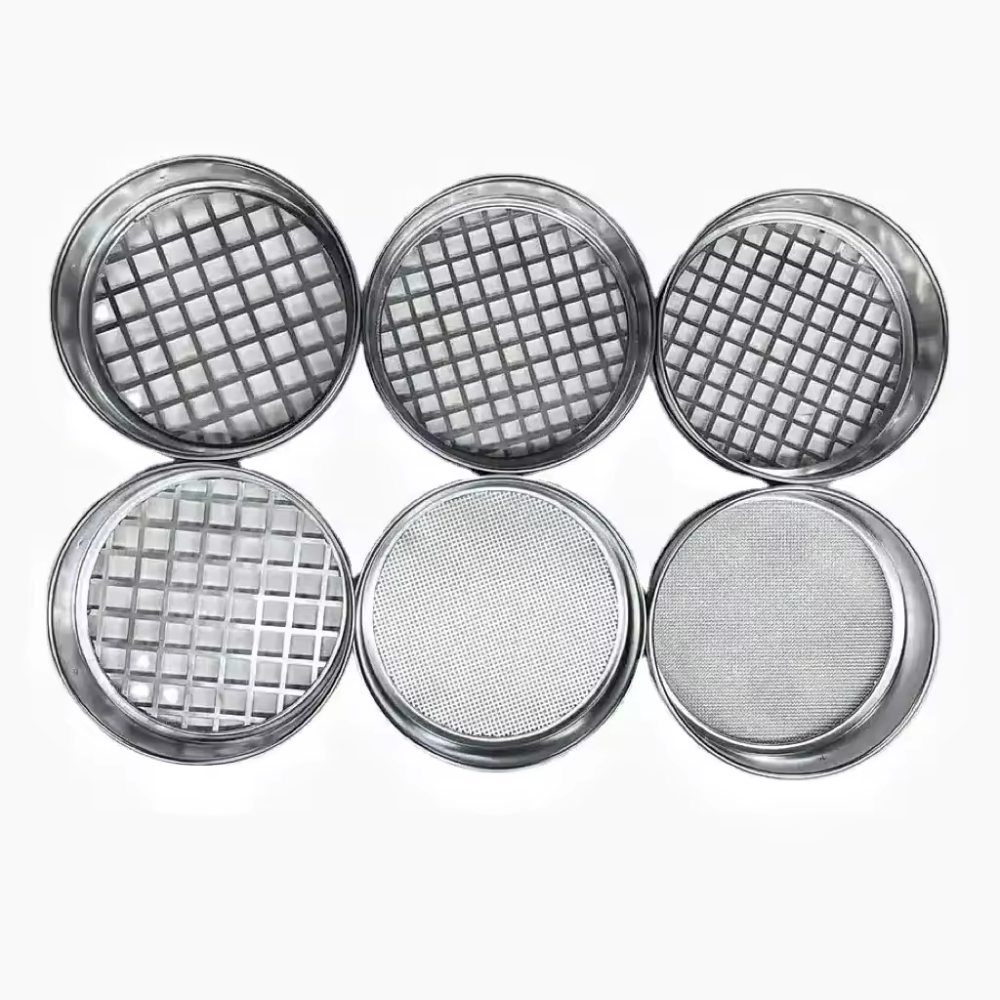

Multiple Hole Shapes: Round, square, or slotted holes available
-
Standard Compliant: Meets ISO 3310-2 and other industry testing requirements
-

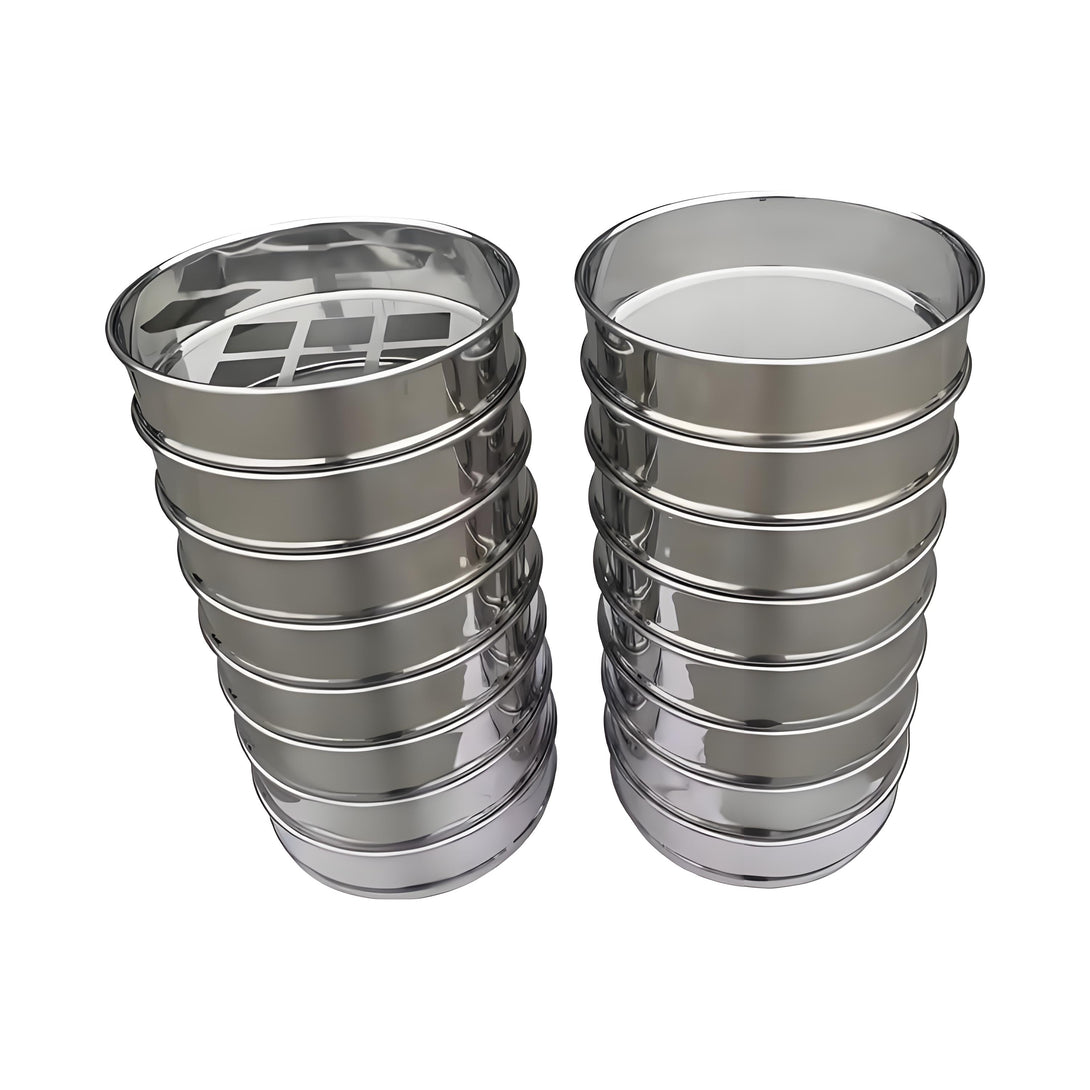

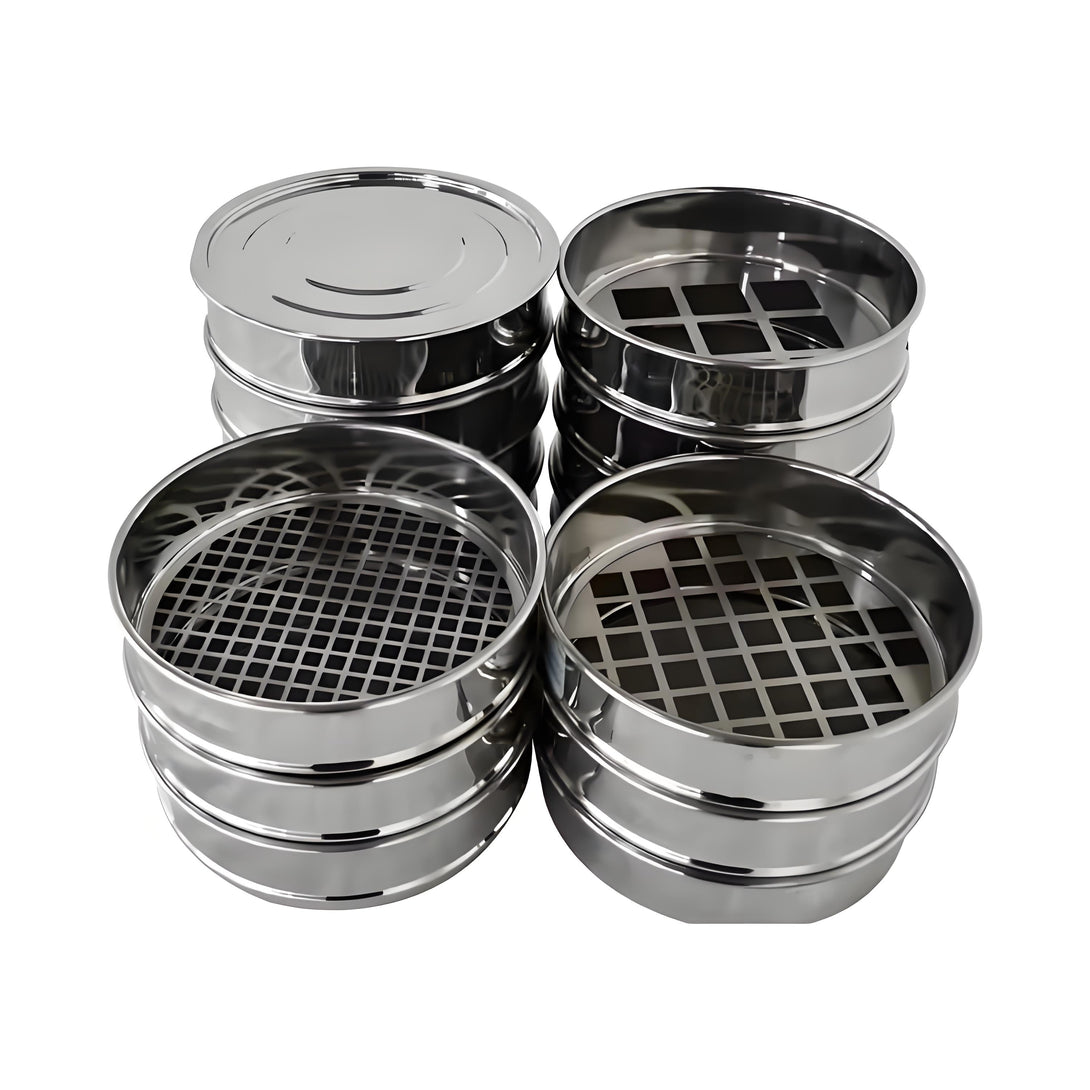

Stackable Design: Compatible with most sieve shakers and frames
-
Customizable Options: Diameter, hole size, plate thickness, frame height, and labeling can be tailored to your needs
Common Sizes & Specifications
| Diameter | Hole Size Range | Hole Shape | Plate Thickness | Material | Frame Height | Standard |
| 100 mm | 1.0 – 10.0 mm | Round / Square | 0.5 – 1.0 mm | Stainless Steel | 25 mm | ISO 3310-2 |
| 200 mm | 1.0 – 125 mm | Round / Square / Slotted | 0.8 – 1.5 mm | Stainless / Galvanized | 50 mm | ISO 3310-2 |
| 300 mm | 4.0 – 100 mm | Round / Square | 1.0 – 2.0 mm | Galvanized Steel | 75 mm | ISO 3310-2 |
| 315 mm | 6.3 – 90 mm | Round / Square | 1.2 – 2.5 mm | Mild Steel | 75 mm | ISO 3310-2 |
| 400 mm | 6.3 – 63 mm | Round / Slotted | 1.5 – 3.0 mm | Stainless Steel | 100 mm | DIN 24041 |
| 450 mm | 8.0 – 50 mm | Round / Slotted | 1.5 – 3.0 mm | Stainless / Mild Steel | 100 mm | DIN 24041 |
| 500 mm | 10 – 63 mm | Round / Slotted | 2.0 – 3.0 mm | Mild Steel | 120 mm | Custom |
| 600 mm | 12.5 – 50 mm | Square / Slotted | 2.0 – 4.0 mm | Stainless Steel | 150 mm | Custom |
Other sizes, hole types, materials, and standards (ASTM, JIS, etc.) are available upon request
Applications
-
Construction aggregates and gravel
-
Agricultural seed and grain grading
-
Fertilizer and plastic pellet sorting
-
Coal, coke, and ore separation
-
Recycling and industrial raw materials
Quality & Standards
All LinKinMFG perforated sieves are manufactured under strict quality control procedures and fully comply with ISO 3310-2 or DIN 24041, ensuring reliability and repeatability in your laboratory or production environment.
Custom Solutions Available
Looking for something specific? We can manufacture perforated plate sieves based on your drawings or required specifications – including custom hole sizes, logo engraving, serial number marking, and stacking ring compatibility.
