Product Overview

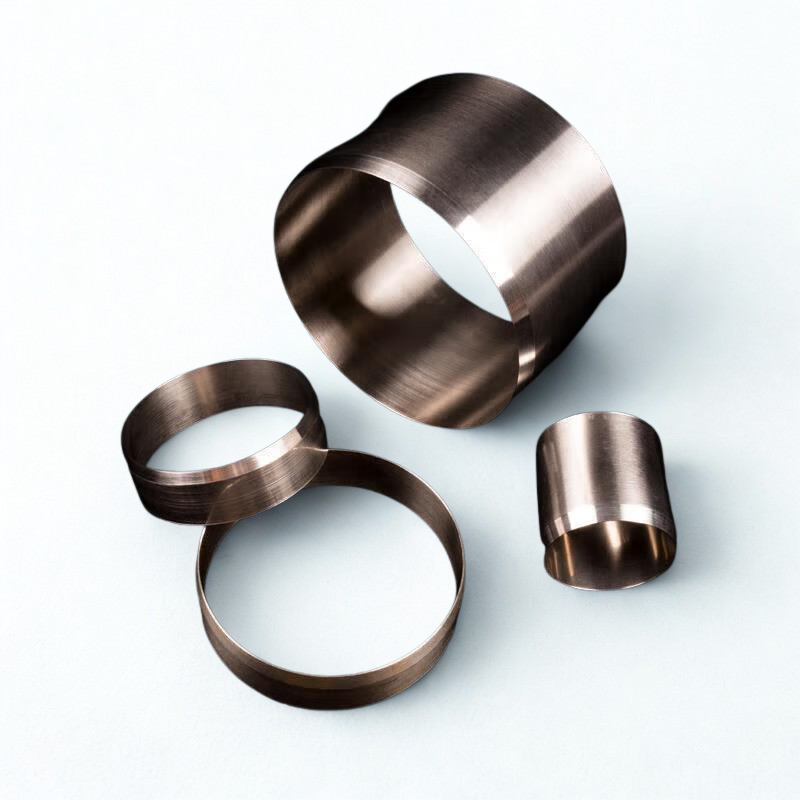

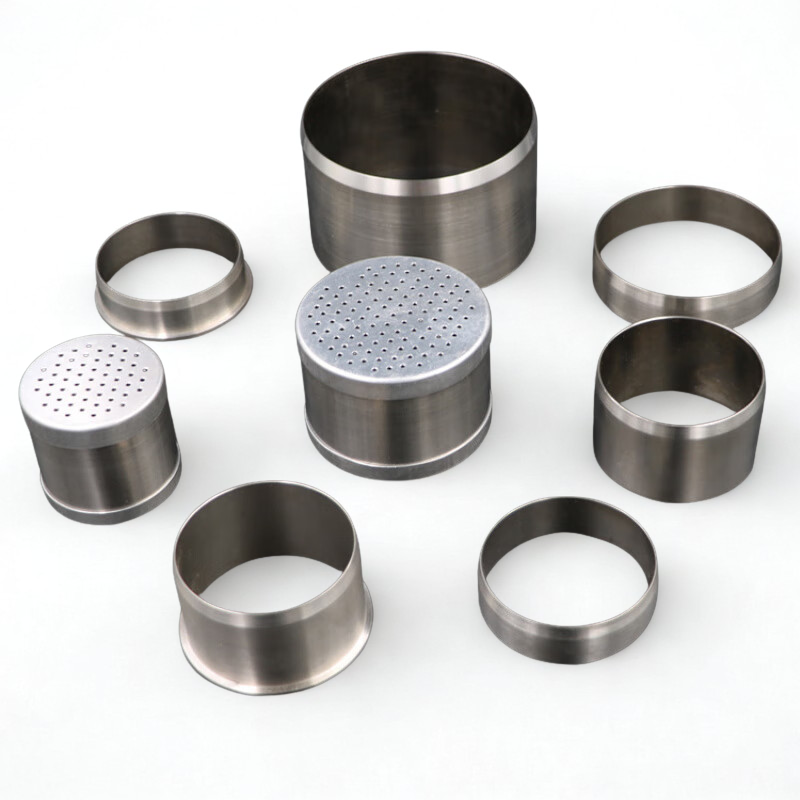

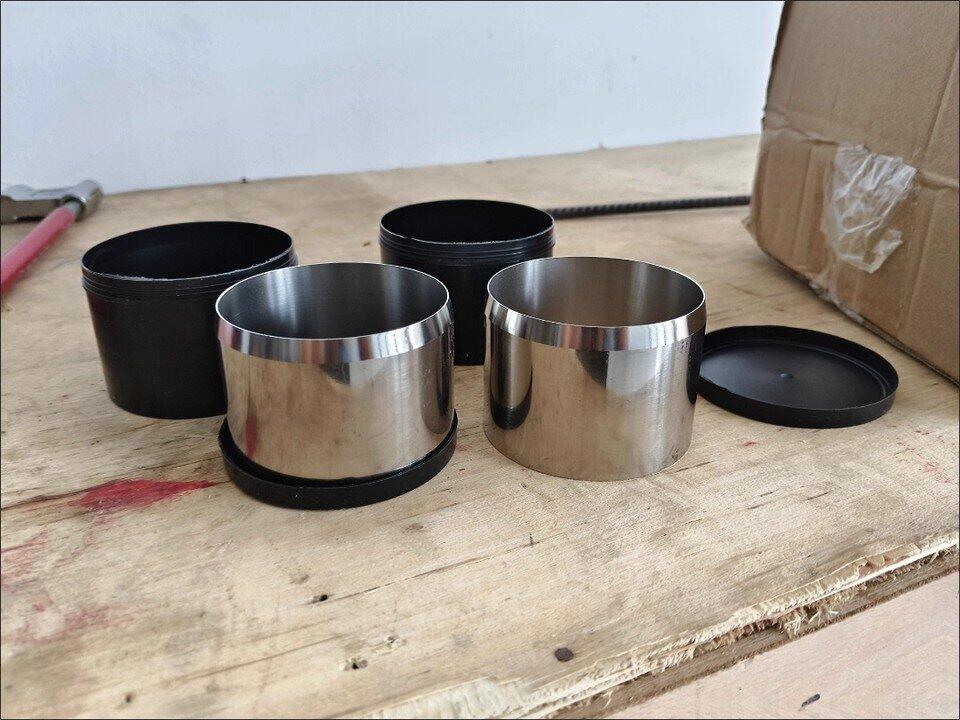

The stainless steel soil core sampler ring (also known as soil sampling ring or permeability soil ring sampler) is a precision tool designed for collecting undisturbed soil samples.
It preserves the natural structure, density, and moisture content of the soil, making it ideal for laboratory analysis, geotechnical testing, permeability studies, shear tests, and environmental research.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | High-quality stainless steel body with aluminum or stainless steel top & bottom covers |
| Volume Options | 60 cm³ / 100 cm³ / 120 cm³ / 200 cm³ / 500 cm³ |
| Common Sizes | 60cm³: Ø61.8 × 20mm 100cm³: Ø50.46 × 50mm 120cm³: Ø61.8 × 40mm 200cm³: Ø70 × 52mm 500cm³: Ø100 × 63.7mm |
| Accessories | Handle, hammering rod, cutting knife, bottom cap, sealing cover, carrying case |
| Sampling Depth | Standard sampling depth up to 1 meter; customizable for deeper sampling |
| Surface Finish | Polished smooth inner and outer walls for minimal friction |
Key Features
-
Undisturbed Sampling – Sharp cutting edges minimize soil disturbance and keep samples intact.
-
High-Precision Manufacturing – Strictly controlled dimensions ensure accurate and reliable results.
-
Modular Design – Detachable rings allow quick replacement and compatibility with multiple sizes.
-
Low Resistance Cutting Edge – Special blade geometry reduces soil penetration resistance.
-
Easy Sample Extraction – Push-out slots make it easy to remove undisturbed soil cores.
-
Durable & Corrosion-Resistant – Premium stainless steel ensures long-lasting performance.
Applications
-
Geotechnical Testing: Soil bulk density, permeability, and shear strength tests.
-
Laboratory Analysis: Moisture content, density, and porosity measurements.
-
Environmental Studies: Soil contamination monitoring and ecological assessments.
-
Agricultural Research: Soil fertility, drainage capacity, and structural analysis.
-
Field Sampling: Suitable for construction sites, research surveys, and exploration.
-
Advantages
-
Accuracy – Consistent sample volume for precise laboratory results
-
Efficiency – Optimized cutting design improves sampling speed
-
Versatility – Suitable for both laboratory and field applications
-
Durability – Stainless steel construction ensures long-lasting performance
-
Customization – Available in various sizes and volumes; OEM support provided

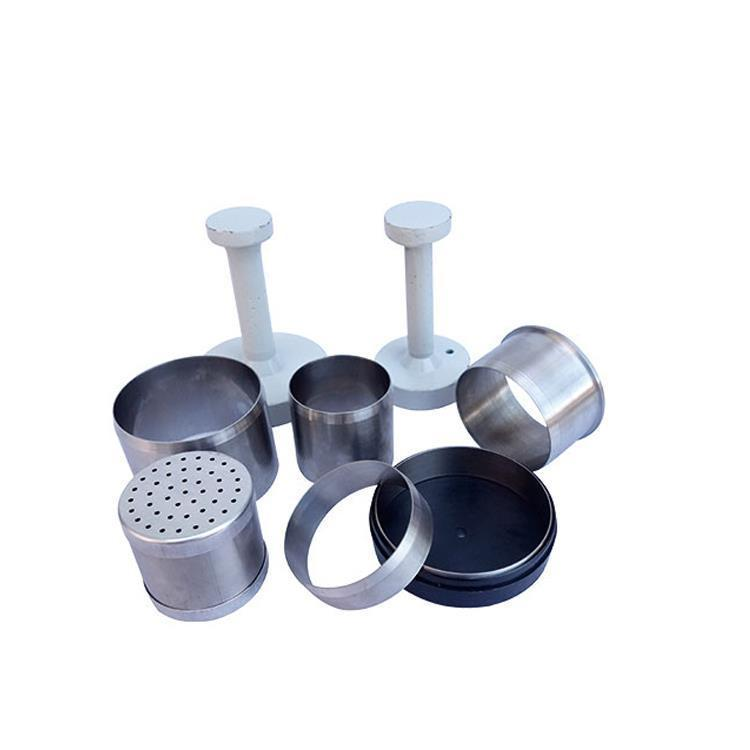

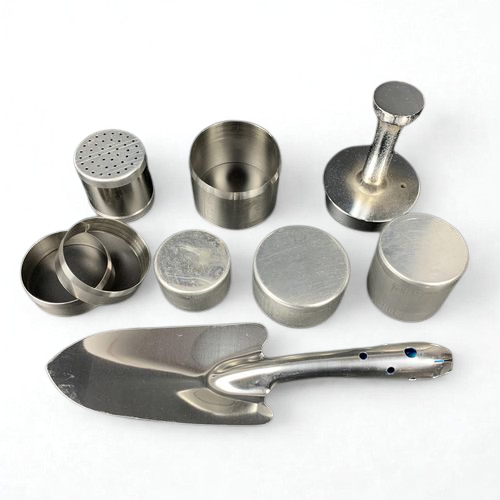

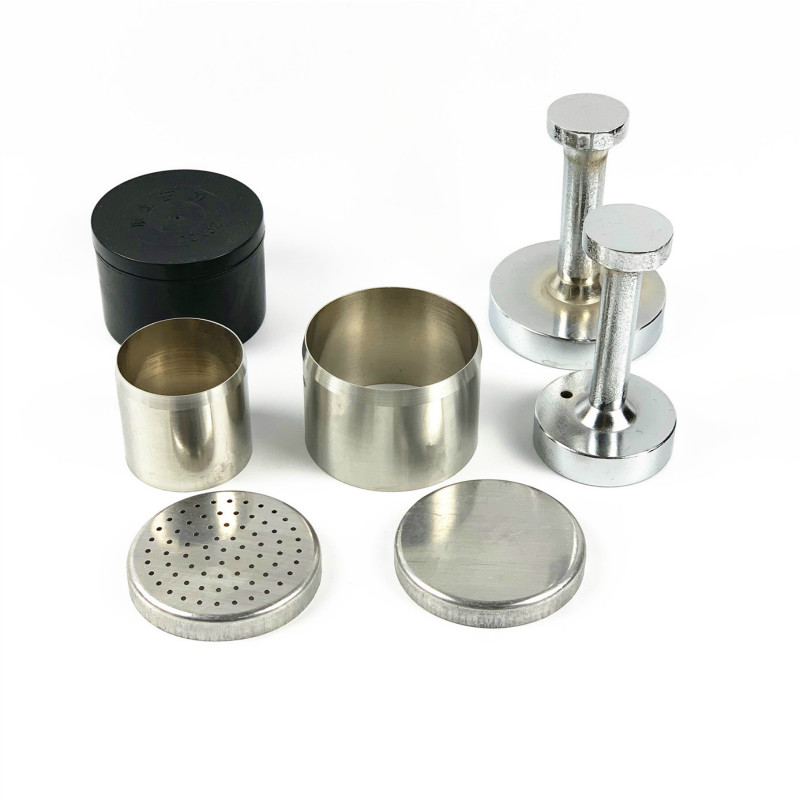

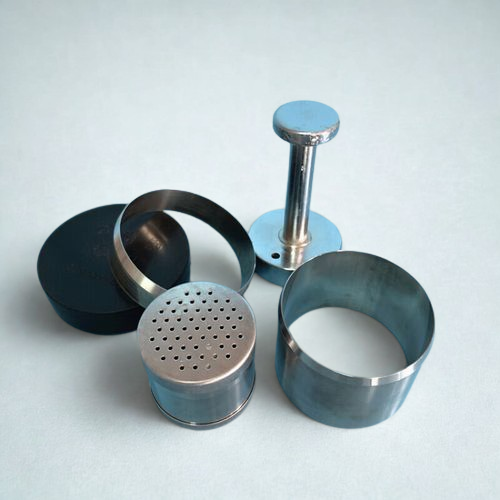

Recommended Kit Configurations
1. Basic Single-Ring Kit
-
Includes: 1 stainless steel sampling ring (100cm³ or 200cm³) + covers + handle
-
Best For: Laboratory use, repetitive measurements, easy to clean and store.
2. Professional Multi-Ring Kit
-
Includes: 3-5 rings (60 / 100 / 200cm³) + handle + hammer + cutting knife + carrying case
-
Best For: Field sampling across multiple points, quick ring replacement, and efficient workflow.
3. Deep Soil Core Drilling Kit
-
Includes: 1m sampling rod + stainless steel ring + bottom cap + drilling base + cutting knife
-
Best For: Deep soil core extraction for geotechnical engineering and advanced soil research.
Call to Action
Order Now to get reliable and accurate soil sampling solutions!
For bulk orders or customized kits, please contact us directly.
