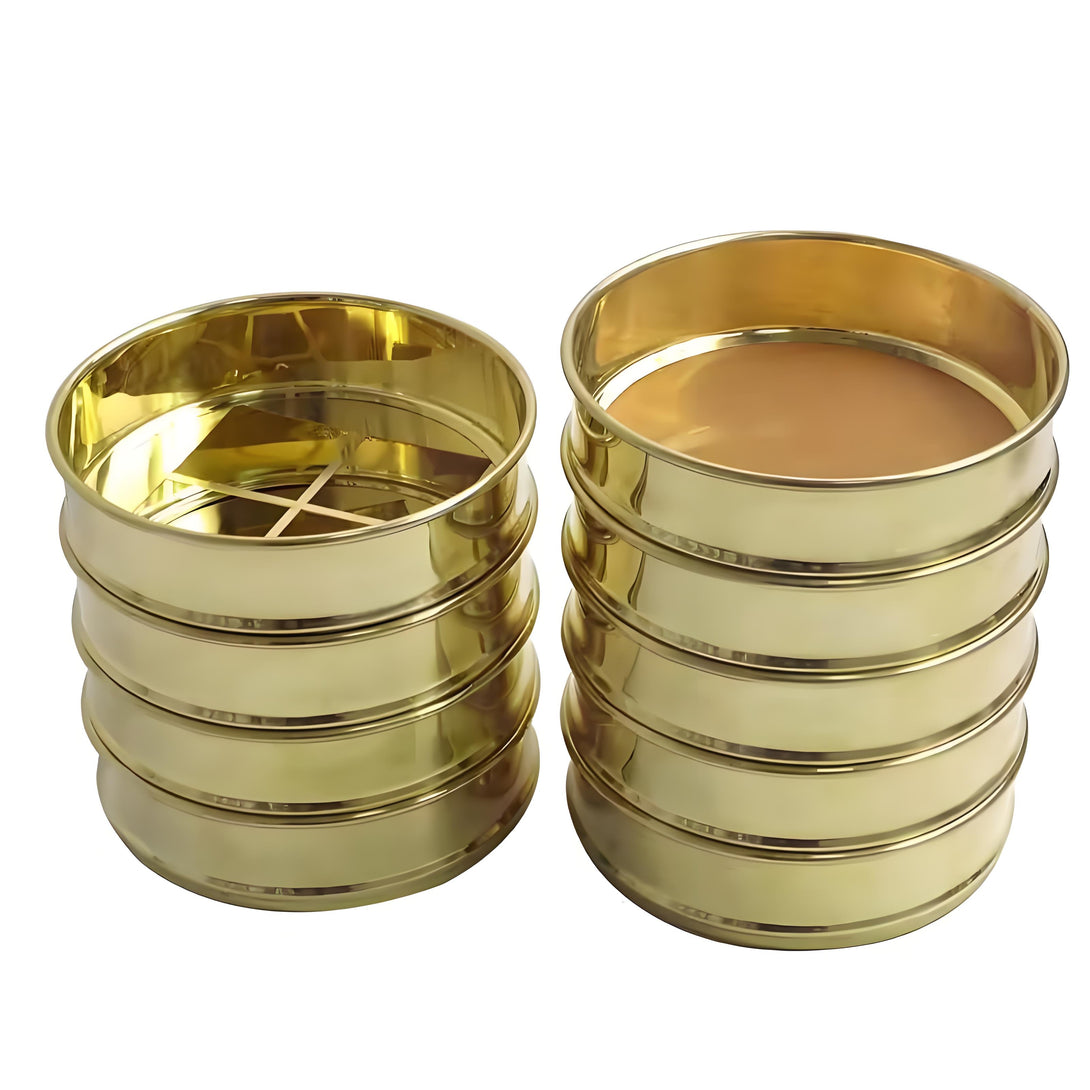

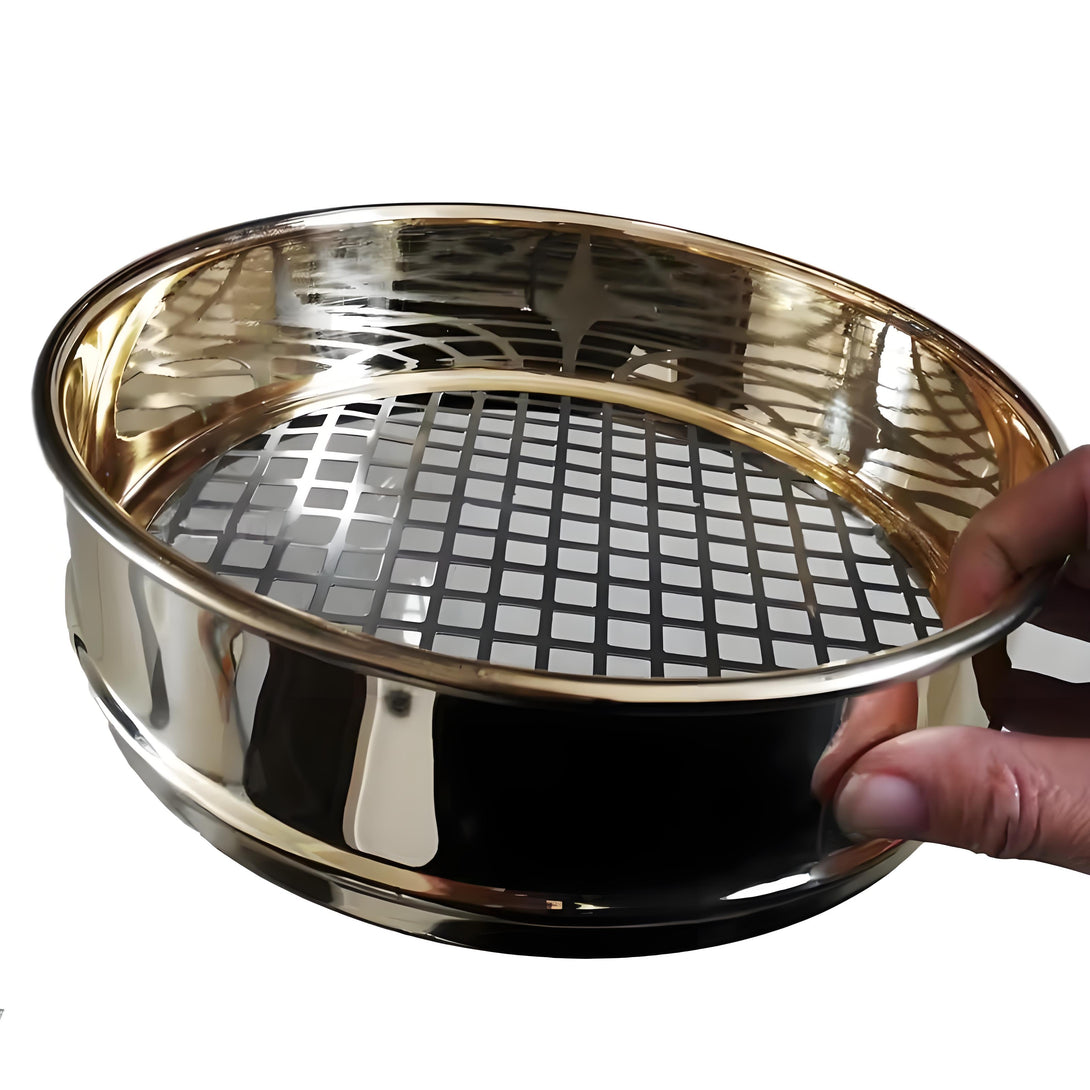

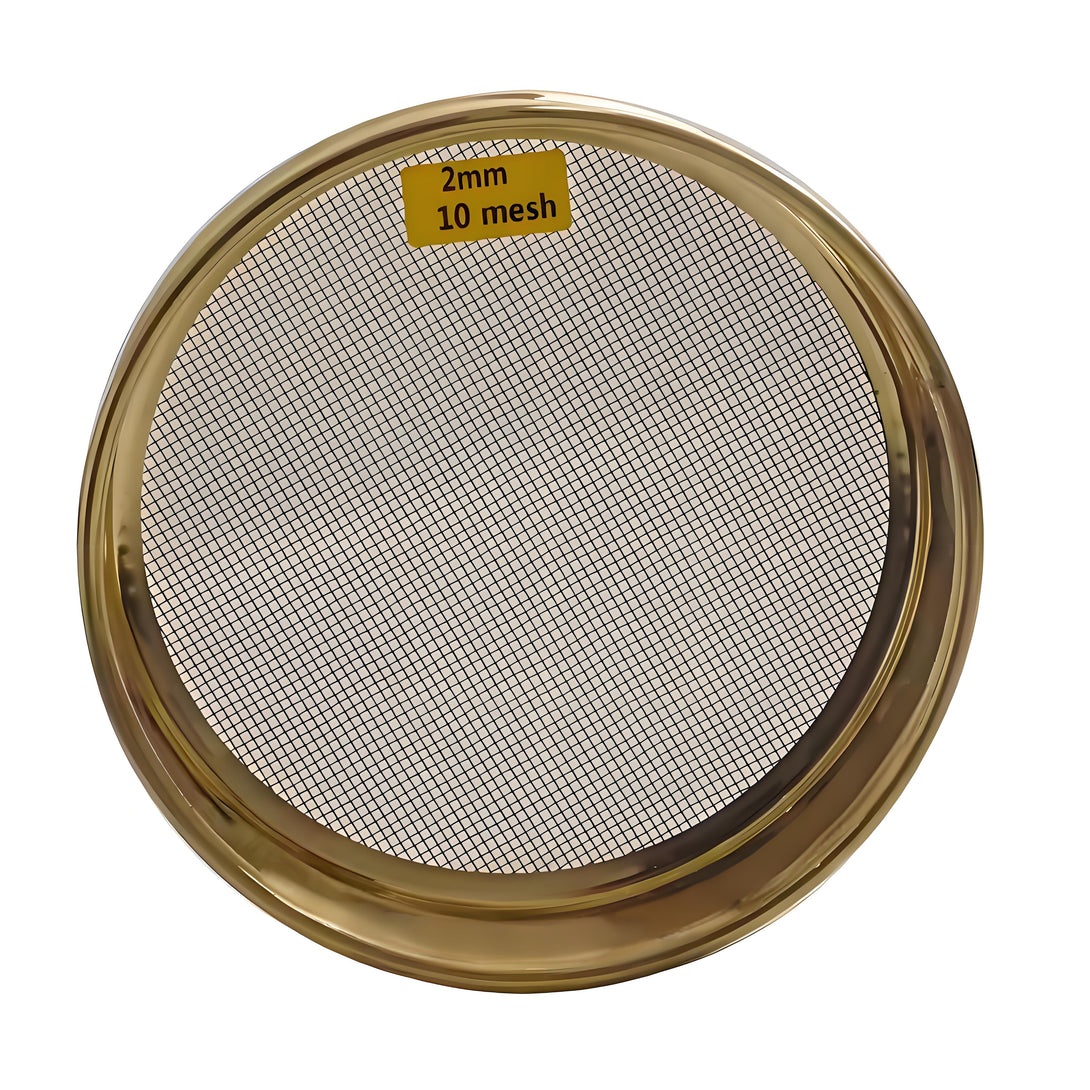

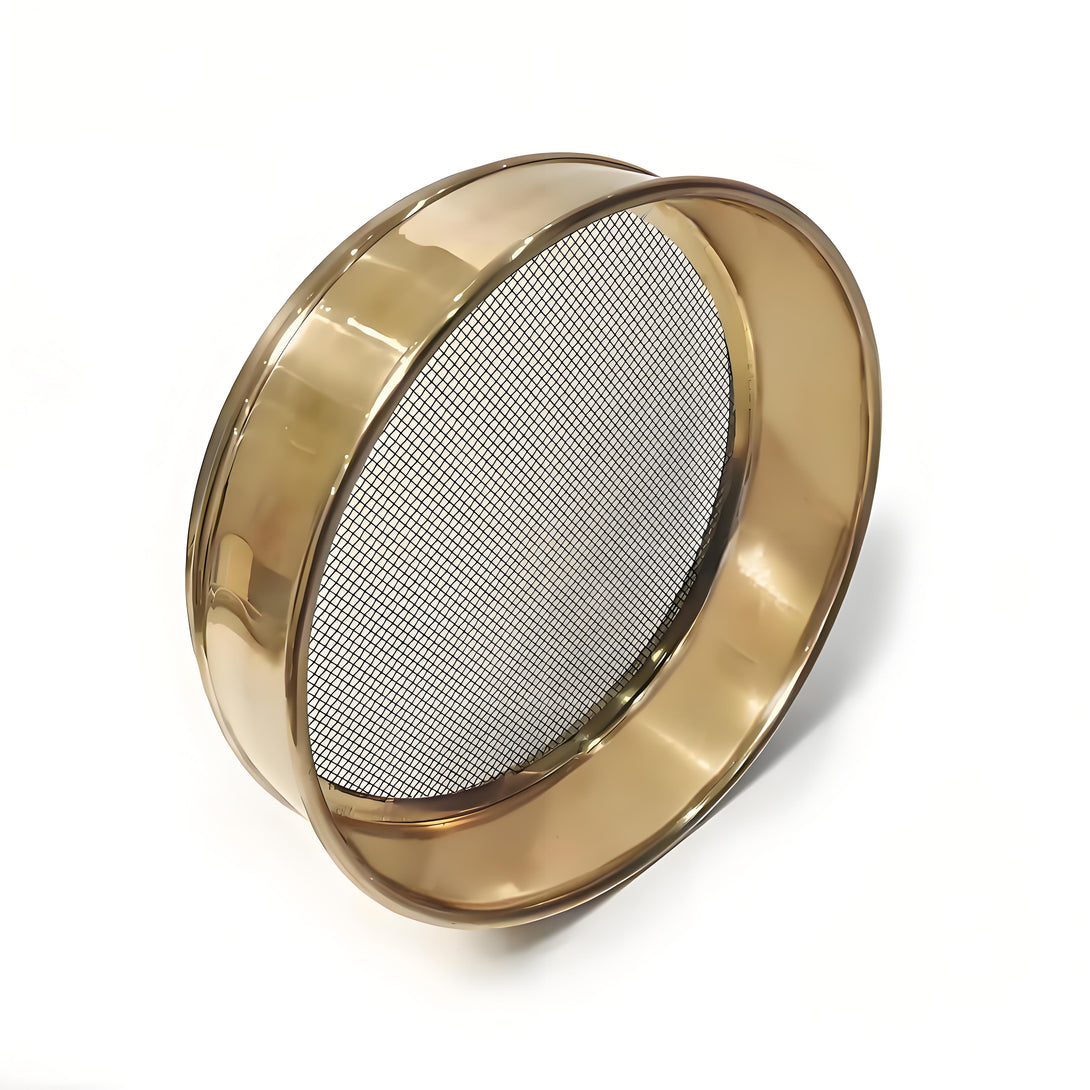

Brass Test Sieves | Durable & Precise Laboratory Sieving
Available Diameters: 8 inch (200 mm), 12 inch (305 mm), 3 inch (76 mm)
Material: Brass Frame + Brass Mesh / Brass Frame + Stainless Mesh
Standard Compliance: ASTM E11, ISO 3310-1
Custom Options Available
Product Overview
Our Brass Test Sieves are specially designed for precise particle size analysis in laboratories where non-ferrous materials are required. Constructed with high-quality brass frames and fine brass or stainless steel mesh, they provide accurate and repeatable sieving results with excellent corrosion resistance.
These sieves are ideal for applications involving light-sensitive materials, fine powders, and when avoiding ferrous contamination is critical — such as in pharmaceutical, chemical, or precious metal industries.
Key Features
-
Non-Magnetic & Corrosion Resistant: Ideal for chemical-sensitive or non-ferrous material testing
-
Excellent Precision: Woven mesh calibrated to meet ASTM E11 or ISO 3310-1 standards
-
Classic Construction: Hand-crafted brass frames for both beauty and functionality
-
Customizable Markings: Laser-etched or engraved labeling available (aperture size, standard, brand, serial number)
-
Stackable Design: Compatible with most sieve shakers and stacking systems
-
Optional Accessories: Brass lid, bottom pan, and gasket rings available
Common Sizes & Specifications
| Diameter | Aperture Range | Mesh Material | Frame Height | Standards |
|---|---|---|---|---|
| 3 inch (75 mm) | 20 µm – 2.36 mm | Brass / Stainless | 1.75 inch (45 mm) | ASTM E11 |
| 8 inch (200 mm) | 20 µm – 5.60 mm | Brass / Stainless | Full / Half Height | ASTM E11, ISO 3310-1 |
| 12 inch (305 mm) | 38 µm – 6.3 mm | Brass / Stainless | Full Height | Custom / ISO 3310-1 |
Micron and mesh sizes from No.635 (20 µm) to No.4 (4.75 mm) available.Custom apertures or engraved company logos can be produced upon request.
Typical Applications
-
Pharmaceutical powder grading
-
Fine chemical analysis
-
Precious metal and gemstone screening
-
Paint pigments and cosmetics testing
-
Educational and research laboratories
-
Historical or museum sample analysis
Why Choose Brass Sieves?
Brass sieves are the preferred choice when minimal contamination, aesthetic appearance, and corrosion resistance are important. Many government labs, universities, and premium material manufacturers trust brass for its stable performance and non-reactive nature.
Packaging & Accessories
-
Individual sieve packed with protective foam
-

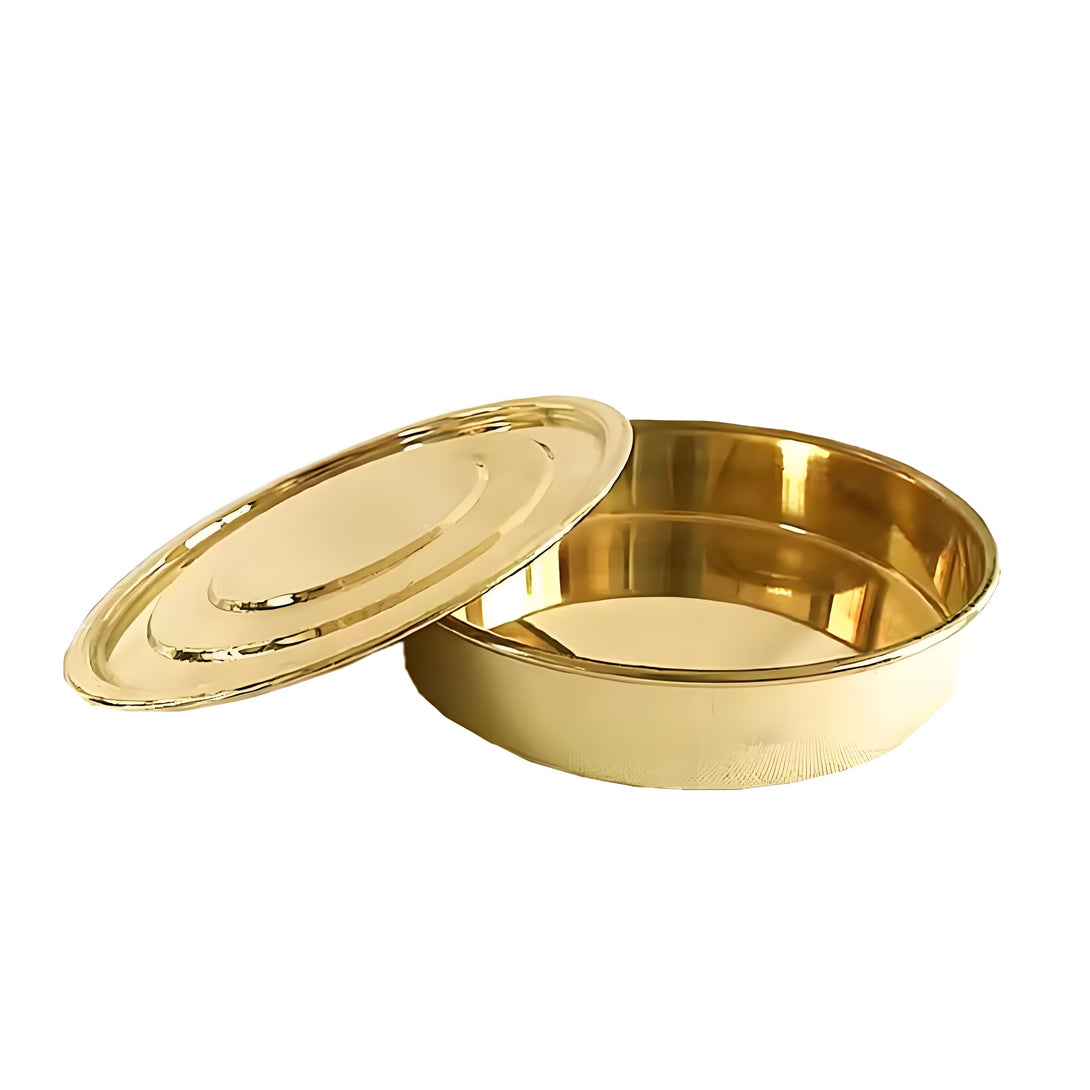

Optional brass lid & receiving pan
-

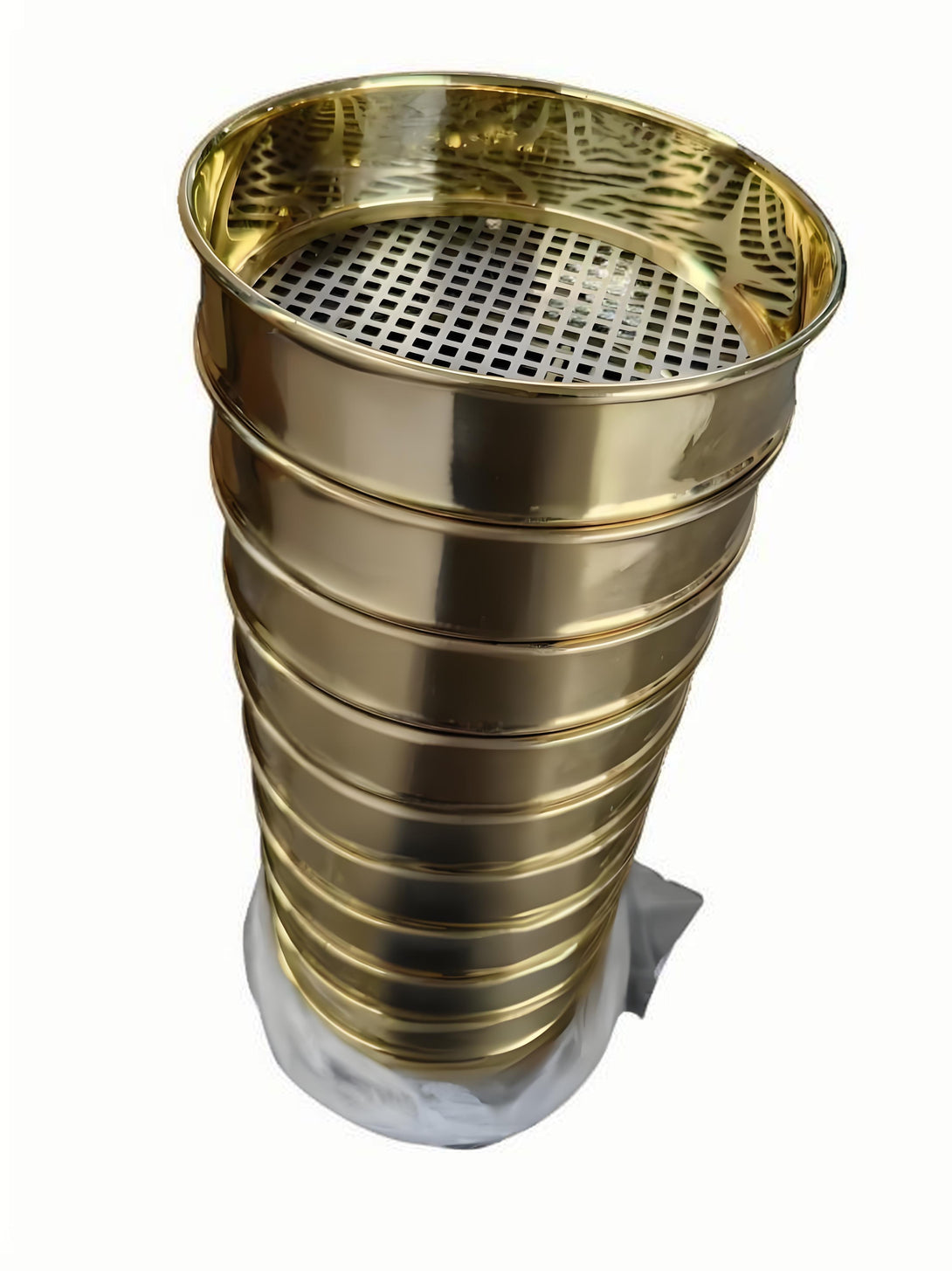

Multi-sieve stacking sets available
-
Custom wooden or plastic storage cases available on request
