Professional Soil Sampling Solutions
Precision Engineered for Geotechnical, Agricultural & Environmental Research

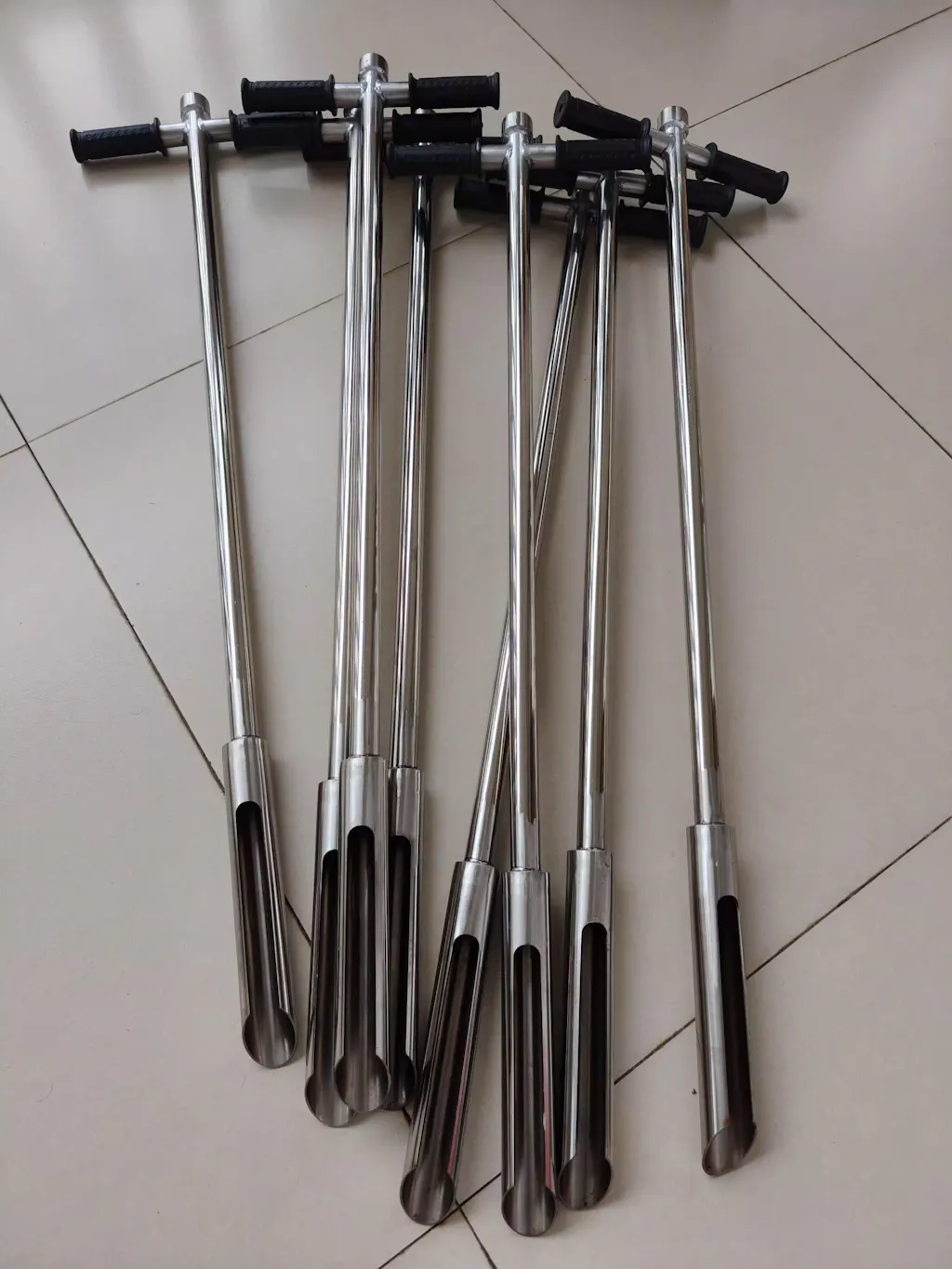

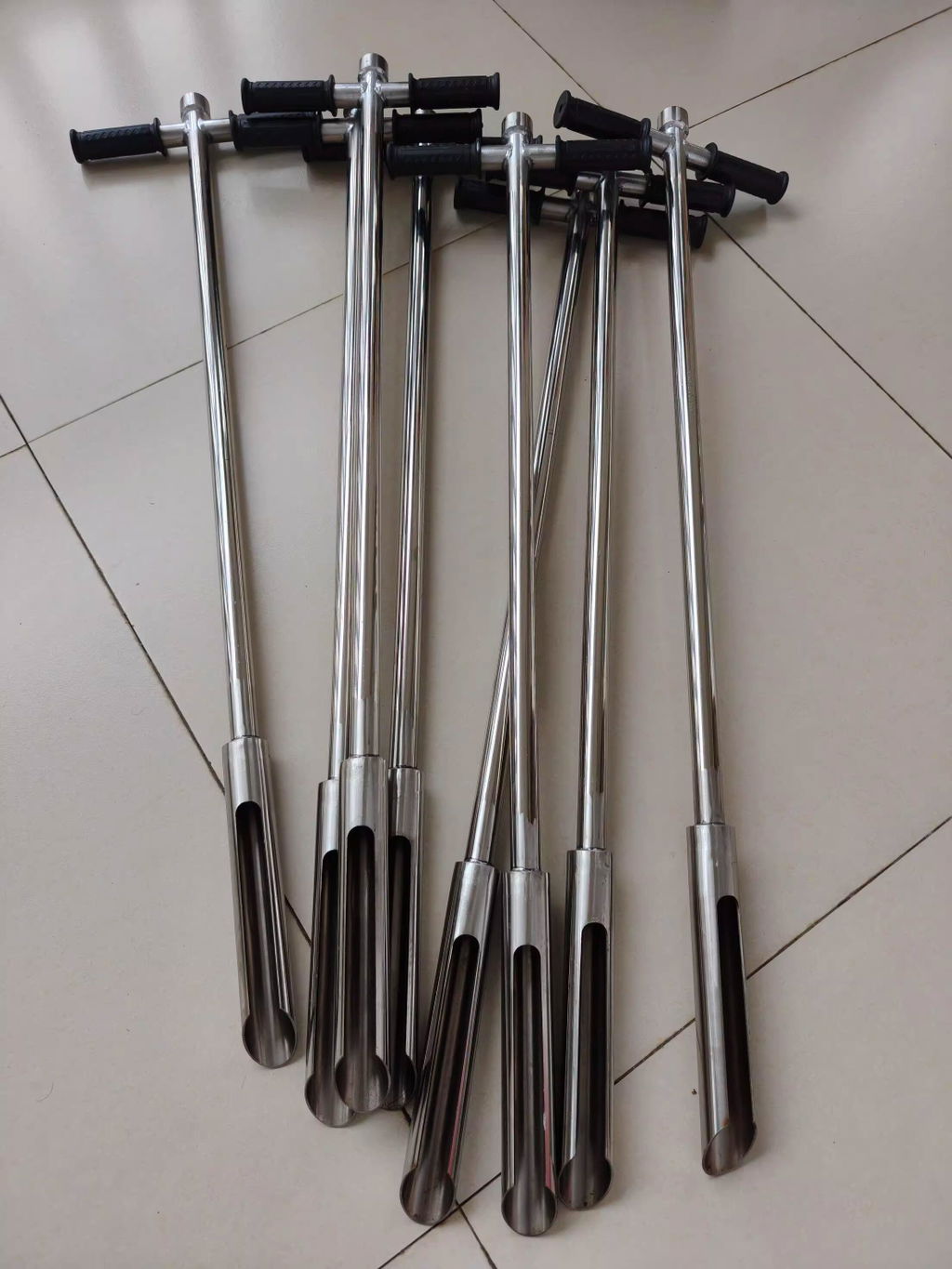

Stainless Steel Soil Sampler meets the requirements for full-depth, consistent, and convenient soil sampling, improving the accuracy of soil sample collection for tasks such as soil testing and formula fertilization, as well as soil monitoring. It enables convenient, fast, and accurate soil sampling, minimizing sampling errors.
Core Technologies
▶ Robust Construction
Bits/Rods/Handles crafted with heavy-gauge 304 stainless steel tubing – corrosion-resistant, field-proven durability.
▶ Ergonomic Efficiency
Non-slip rubberized handles with vibration-dampening technology reduce fatigue during extended operation.
▶ Precision Measurement
Laser-engraved scales (0.1cm accuracy) withstand abrasion without rod damage.
Stainless Steel Soil Sampler Specifications（Customized price based on specifications） |
|||||
| Type | Bit Length | Bit Diameter | Bit Thickness | Remarks | |
| Undisturbed Soil Sampler | Outer Length: 25cm [Inner Depth: 20cm] | 25mm | 2mm | Customized | |
| 32mm | |||||
| 38mm | Standard | ||||
| 50mm | |||||
| 70mm | |||||
| 80mm | |||||
| 100mm | |||||
| Type | Bit Length | Bit Diameter | Bit Thickness | ||
| Spiral Soil Auger (Twist Auger) | 35cm | 40mm | 5mm | ||
| 45mm | |||||
| 50mm | |||||
| 55mm | |||||
| Type | Bit Length | Bit Diameter | Bit Thickness | ||
| Dutch soil drill | Outer Length: 30cm [Inner Depth: 28cm] | 42mm | 2mm | ||
| 50mm | |||||
| 70mm | |||||
| 100mm | |||||
| Type | Bit Length | Bit Diameter | Bit Thickness | ||
| Multi-Geology Soil Sampler | Outer Length: 25cm [Inner Depth: 20cm] | 38mm | 2mm | ||
| 50mm | |||||
| 70mm | |||||
| 80mm | |||||
| 100mm | |||||
| Type | Bit Diameter | Total Sampler Length | Slot Length | Bit Thickness | Remarks |
| Through-Pipe Long Slot Soil Sampler | 25mm | 100cm | 85cm | 2mm | With drive hammer (std.) |
| 32mm | |||||
| 38mm | |||||
| 50mm | |||||
| Type | Ring Knife Volume | Ring Knife Dimensions | Ring Knife Thickness | Bit Thickness | Remarks |
| Bulk Density Ring Sampler | 100cm3 | 50.46x50mm | 1.5mm | 3.8mm | With drive hammer (std.) |
| 200cm3 | 70x52mm | 2mm | 4.8mm | ||
| Type | Bit Length | Bit Diameter | Bit Thickness | Remarks | |
| Root Soil Sampler | Outer Length: 13cm [Inner Depth: 10cm] | 50mm | 2mm | Standard model with soil pusher | |
| 70mm | |||||
| 80mm | |||||
| 100mm | |||||
| Outer Length: 25cm [Inner Depth: 20cm] | 50mm | 2mm | Bit with profiled slot, Standard with drive head | ||
| 70mm | |||||
| 80mm | |||||
| 100mm | |||||
Unified Accessory System
✓ Universal Compatibility
All samplers support:
-
Stainless Steel Step Plate (Weight-bearing capacity: 150kg)
-
Extension Rods
-
Detachable Bits/Handles (Tool-free interchange)
-
Drive Hammer Assembly (Drop-forged steel)
