Interchangeable Sieves | Modular Sieving for Maximum Flexibility
Frame Types: Reusable Stainless Steel / Aluminum Frames
Mesh Options: Replaceable Woven Wire or Perforated Plate
Standard Support: ASTM E11, ISO 3310, DIN
Available Diameters: 200mm, 300mm, 450mm
Application Fields: Laboratory, Quality Control, Pilot Plants
Product Overview
Our Interchangeable Sieves offer a cost-effective and modular solution for users who need to frequently change mesh sizes or materials without purchasing an entire new sieve unit. With a reusable rigid frame and replaceable mesh inserts, these sieves provide exceptional flexibility and sustainability for laboratories, research centers, and production lines.
Designed for convenience and long-term value, the interchangeable system reduces downtime, saves cost on frequent mesh changes, and simplifies calibration and certification processes.
Key Features
-

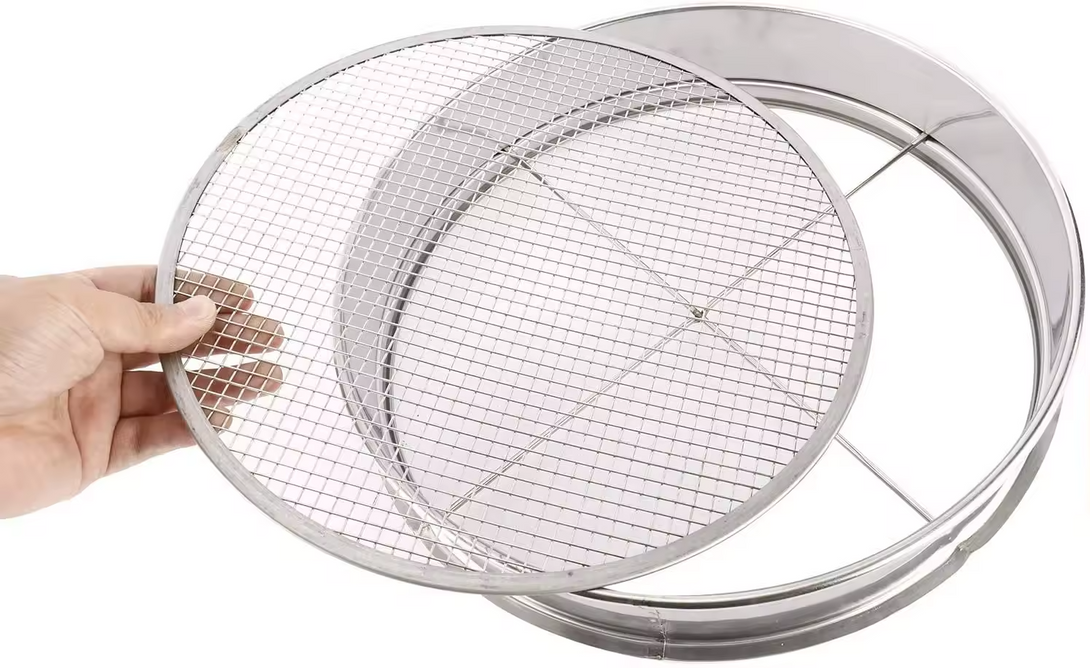

Reusable Frame + Replaceable Mesh Design
Simply insert or swap mesh plates—no need to replace the entire sieve. -
Lower Cost of Ownership
Only replace worn or damaged mesh inserts rather than the full sieve. -
Eco-Friendly and Sustainable
Less metal waste, fewer discarded frames, and more efficient use of resources. -
Compatible with Standard Shakers
Built to ASTM E11 or ISO 3310 dimensions—fits seamlessly into your existing sieve stacks. -
Tool-Free Assembly
Snap-in or screw-lock systems available for quick replacement in under 1 minute. -
Customizable Mesh Plates
Choose from stainless steel woven wire, nickel mesh, or perforated plates for different applications.
Available Configurations
| Frame Diameter | Mesh Type | Aperture Range | Insert Type | Application Focus |
|---|---|---|---|---|
| 200 mm | Woven Wire (SS/Brass) | 20 µm – 5 mm | Snap-in Ring | Lab, Fine Powders, QC Testing |
| 300 mm | Perforated Plate | 4 mm – 125 mm | Bolt-on Plate | Coarse Material, Granules |
| 450 mm | Woven Wire / Perforated | 63 µm – 25 mm | Threaded Insert | Production / Pilot Line Use |
Special mesh materials (nickel alloy, titanium, plastic mesh) available upon request.
Typical Applications
-
Rapid mesh changing in R&D and pilot plants
-
Sieve re-use in abrasive material testing environments
-
Batch testing with variable aperture sizes
-
Low-cost solution for educational and university labs
-
Quality inspection in pharmaceutical, food, and powder metallurgy
Accessories & Services
-
Replacement mesh inserts (all mesh sizes & standards)
-
Frames with engraved logo & aperture size
