PVC / Nylon Plastic Test Sieve

$6.80

尺寸: 200mm

200mm

Mesh: 6 mesh

6 mesh
8 mesh
10 mesh
12 mesh
14 mesh
16 mesh
18 mesh
20 mesh
30 mesh
35 mesh
40 mesh
60 mesh
65 mesh
80 mesh
100 mesh
200 mesh
250 mesh
300 mesh
325 mesh
400 mesh
500 mesh

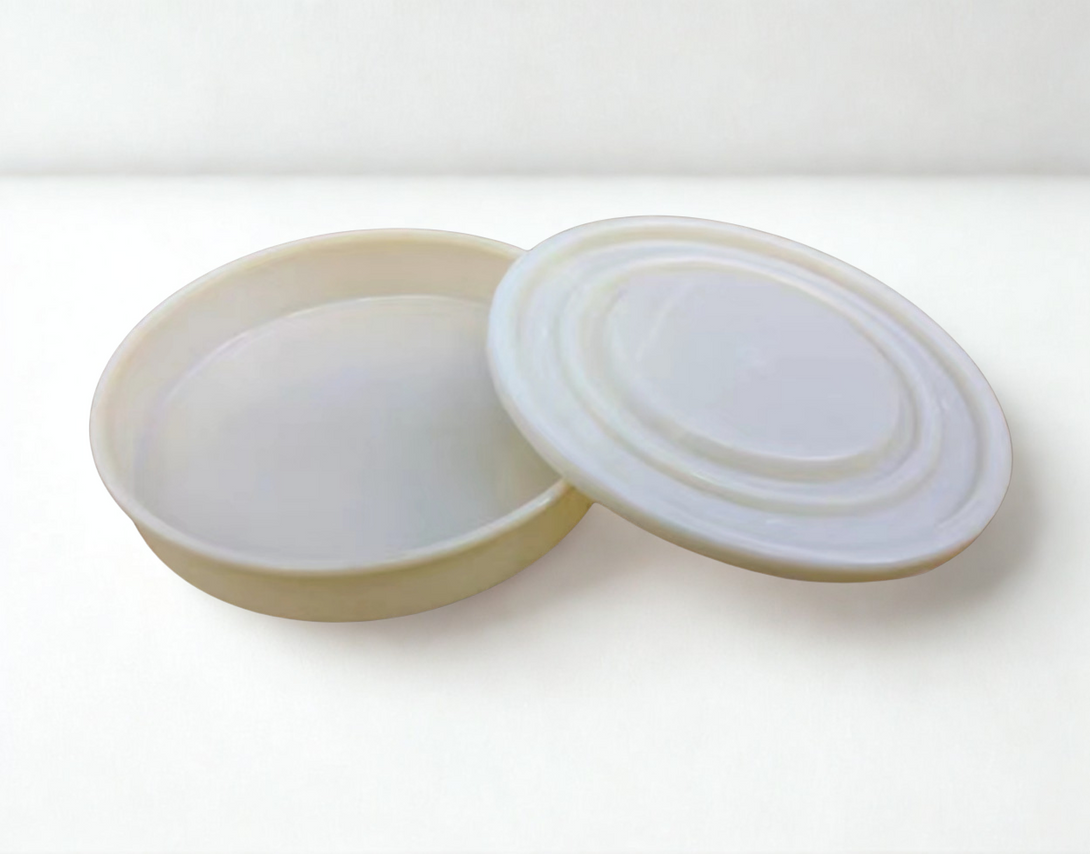

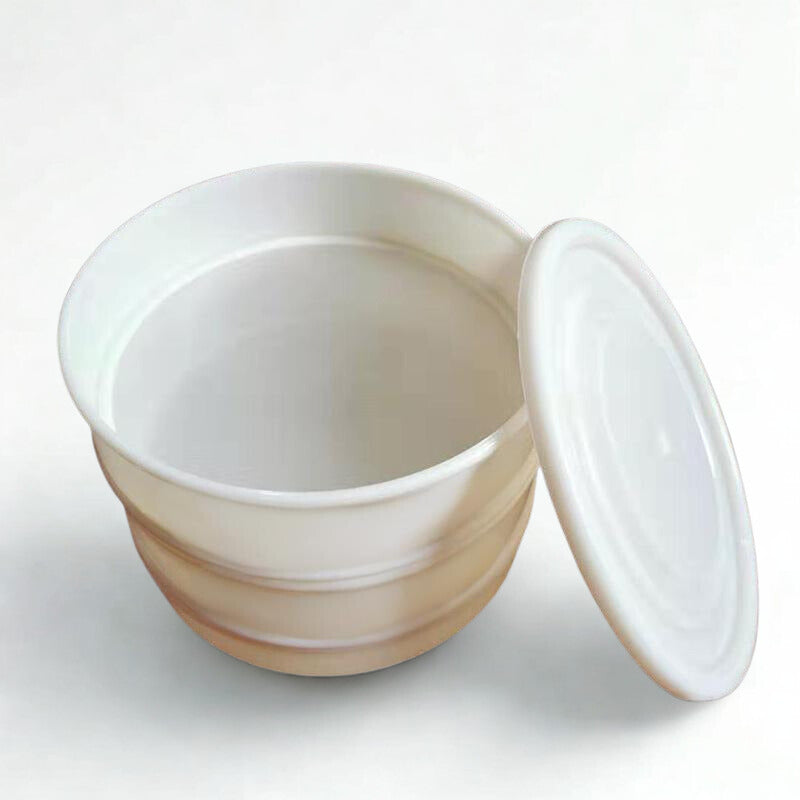

PVC lid + base plate
Add to Wishlist
Description

Product Overview

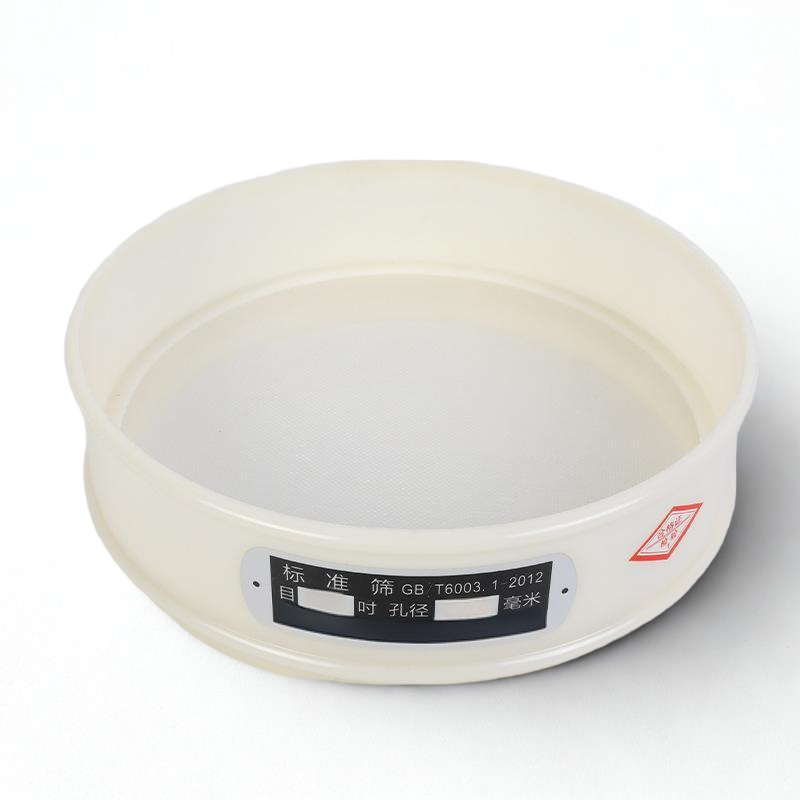

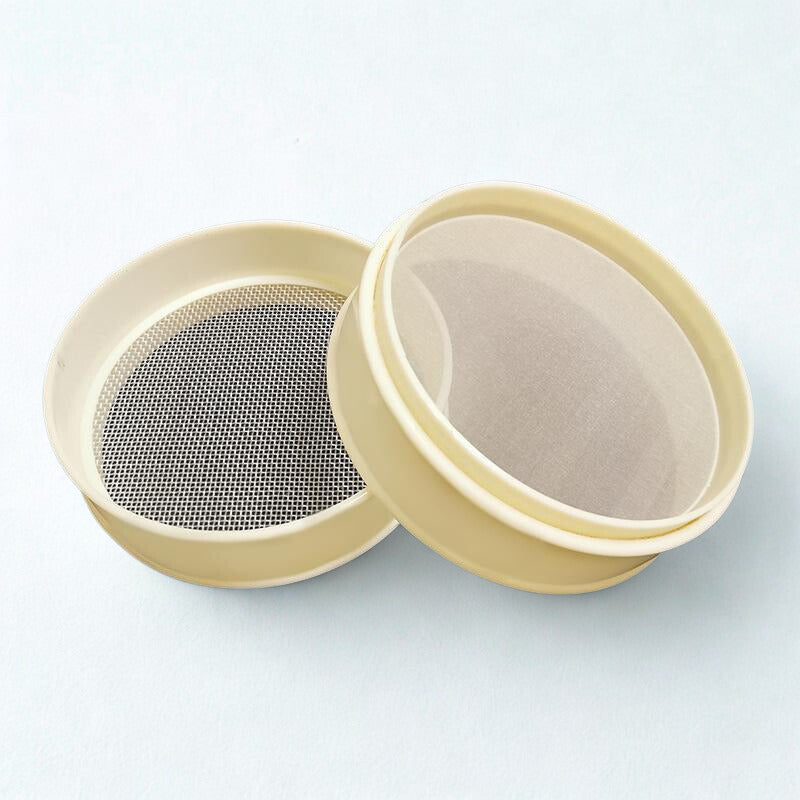

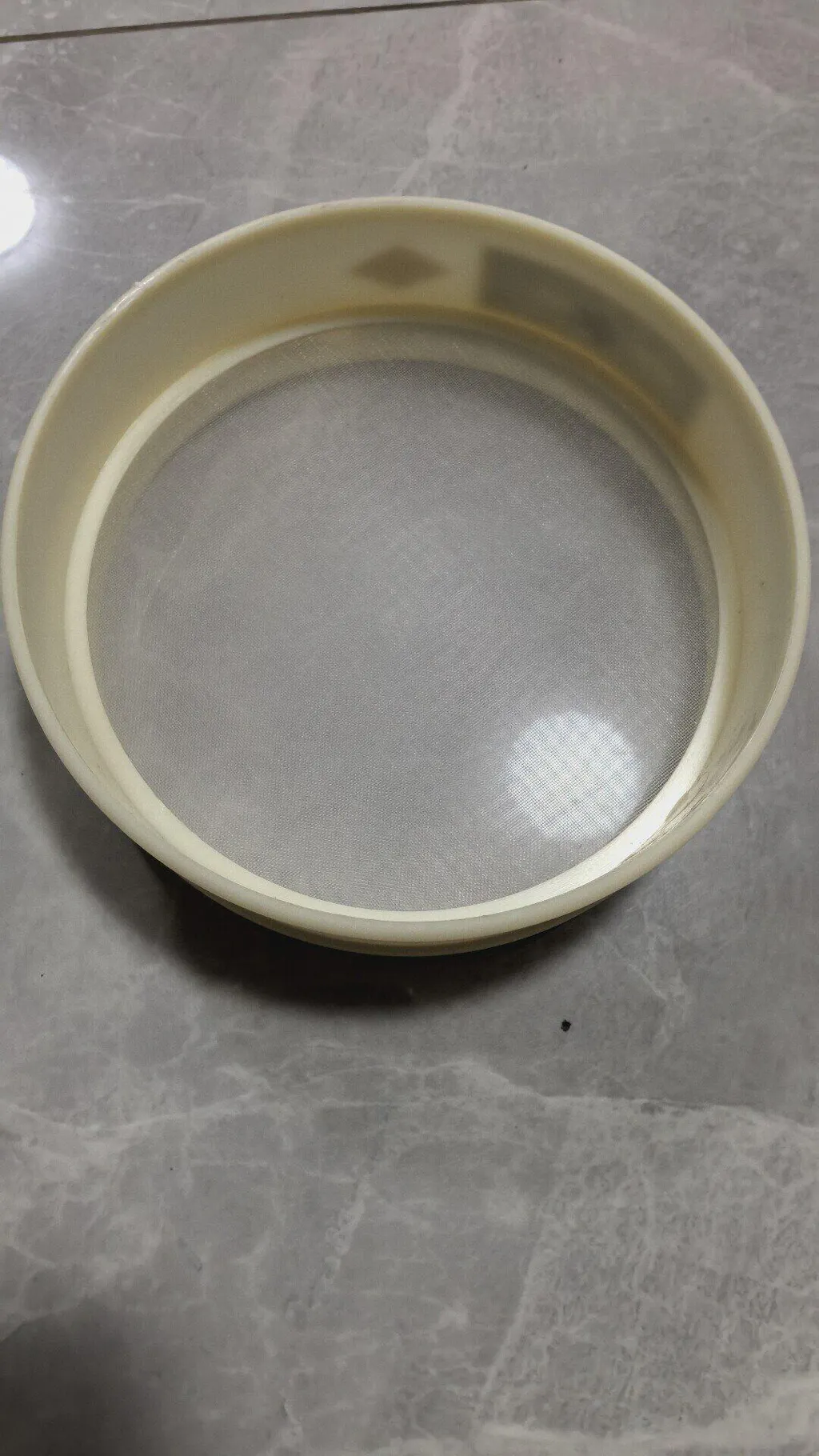

The PVC / Nylon plastic test sieve is made of high-precision nylon or PVC mesh with a lightweight plastic frame. It is widely used for particle size classification, powder filtration, and liquid separation. PVC material offers excellent chemical resistance and durability, while nylon provides high precision, corrosion resistance, and heat tolerance. Ideal for laboratory and industrial applications in chemical, pharmaceutical, food, and environmental sectors.

Key Features

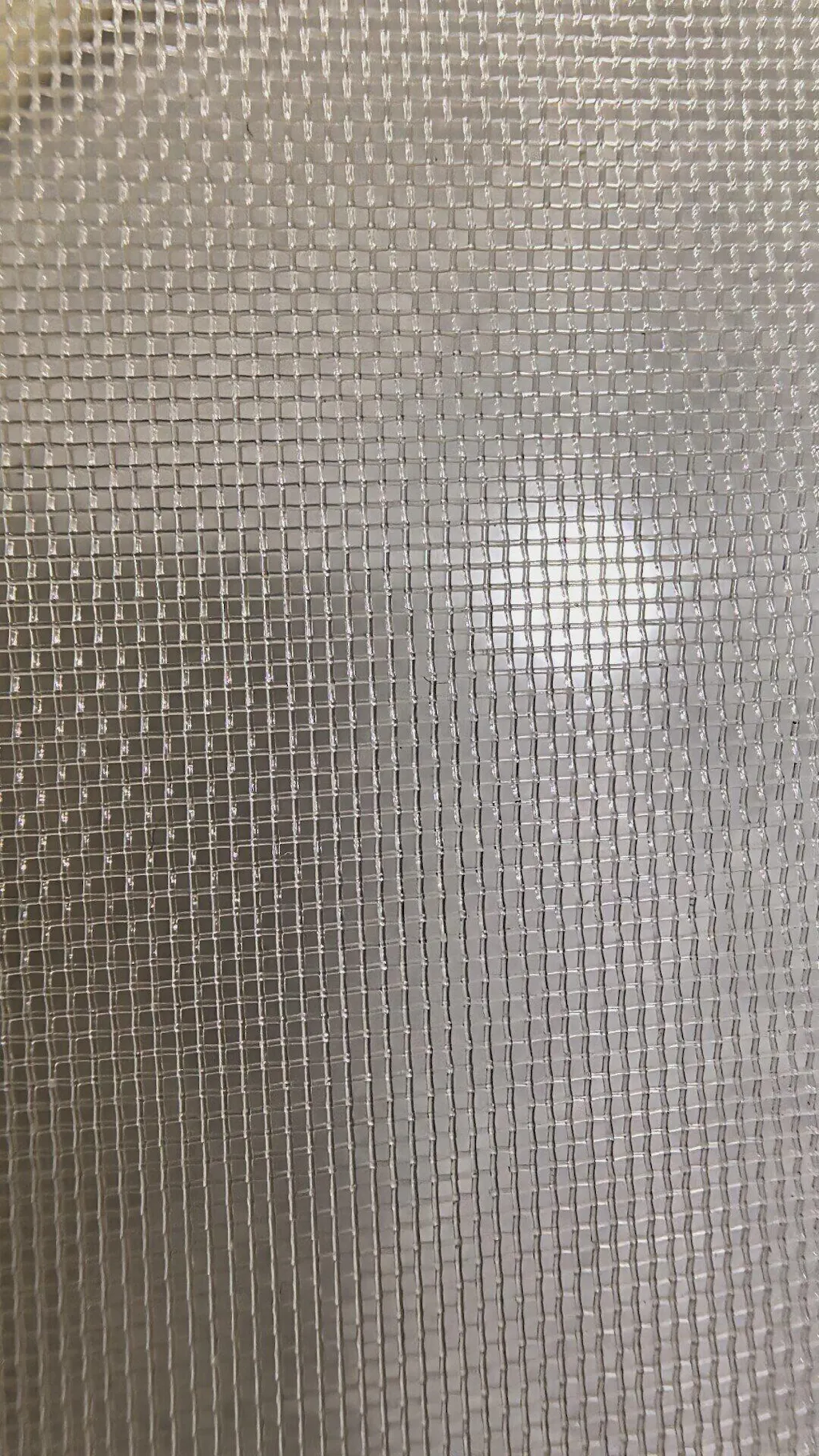

  • High-precision mesh: Nylon mesh supports fine sieving from 5μm to 2000μm; PVC mesh is chemical-resistant and suitable for powder and liquid separation.

  • Lightweight and durable: Plastic frames reduce weight while providing toughness and wear resistance.

  • Non-magnetic, anti-static, metal-free: Completely avoids metal contamination and static interference, ensuring safety and reliability.

  • Strong chemical resistance: PVC withstands acids and alkalis; nylon is suitable for aqueous and general chemical environments.

  • Customizable design and labels: Various diameters, mesh openings, frame colors, and batch custom labels available.

Applications

  • Pharmaceuticals: Powder and granule particle size testing

  • Food industry: Screening of sugar, starch, milk powder, and other fine powders

  • Chemical materials: Screening of plastic pellets, additives, and coating powders

  • Environmental monitoring: Solid-liquid separation and sediment analysis in water testing

  • Research laboratories: Fine powder and liquid sample classification

Technical Specifications

Specification Range Remarks
Mesh material Nylon / PVC Polyester optional
Frame material ABS / PP engineering plastic Food-grade optional
Mesh opening 5μm ~ 2000μm Custom openings supported
Diameter Ø 75mm / 100mm / 150mm / 200mm Other sizes available
Frame height 25mm / 50mm Single or stacked layers
Temperature range -40℃ ~ +90℃ Nylon up to 120℃
Standards ISO 3310 / ASTM E11 -




Laboratory / Industrial Sieve Reference

Category Material / Product Recommended Mesh / Particle Size Typical Use
Herbs Cassia seeds 12–14 mesh Powdering for oral or decoction use
Herbs Notoginseng powder (Sanqi) 100–120 mesh Oral herbal powder
Herbs Oral herbal powder 60–80 mesh Decoction, blending
Herbs Herbal residue 60–150 mesh Residue after extraction
Herbs Herbal facial mask powder 80–120 mesh Cosmetic use
Herbs Herbal powder 40–50 mesh General powdering
Grains & Legumes Rice 12–14 mesh Grinding for flour
Grains & Legumes Rice flour 30–40 mesh Food processing
Grains & Legumes Buckwheat 12 mesh Flour, powder
Grains & Legumes Soybeans 4–5 mesh Food processing, grinding
Grains & Legumes Soy milk 80–120 mesh Beverage preparation
Grains & Legumes Mung beans 10 mesh Grinding / sprouting
Grains & Legumes Mixed grains 40–50 mesh Flour / cereal processing
Grains & Legumes Corn flour 30–40 mesh Food processing
Fine Ingredients Flour 50–60 mesh Baking / cooking
Fine Ingredients Pine pollen 100–120 mesh Nutritional / cosmetic use
Fine Ingredients Pearl powder 120–150 mesh Cosmetic / health supplements
Fine Ingredients Sesame powder 40–50 mesh Food / cosmetic
Fine Ingredients Sesame & millet 22–24 mesh Food processing
Fine Ingredients Fried chicken / burger coating powder 20–30 mesh Food coating
Residues / Misc. Insect droppings 30 mesh Fertilizer / feed
Residues / Misc. Tea residue 120–150 mesh Extraction / compost
Residues / Misc. Soup residue 120–150 mesh Processing by-products
Residues / Misc. Yellow mealworm eggs 12 mesh Feed / breeding
Residues / Misc. Honey 30–120 mesh Filtering / refinement
Residues / Misc. Edible oil 150–200 mesh Filtration / refinement



Mesh Size Conversion Table

Mesh Aperture Mesh Aperture Mesh Aperture
4 mesh 5.00 mm 35 mesh 0.50 mm 250 mesh 0.063 mm
5 mesh 4.00 mm 40 mesh 0.45 mm 300 mesh 0.054 mm
6 mesh 3.20 mm 45 mesh 0.40 mm 325 mesh 0.045 mm
7 mesh 3.00 mm 50 mesh 0.35 mm 350 mesh 0.040 mm
8 mesh 2.50 mm 60 mesh 0.30 mm 400 mesh 0.0385 mm
10 mesh 2.00 mm 65 mesh 0.25 mm 450 mesh 0.035 mm
12 mesh 1.60 mm 70 mesh 0.22 mm 500 mesh 0.0308 mm
14 mesh 1.43 mm 80 mesh 0.20 mm 600 mesh 0.025 mm
16 mesh 1.25 mm 90 mesh 0.18 mm 700 mesh 0.022 mm
18 mesh 1.00 mm 100 mesh 0.15 mm 800 mesh 0.020 mm
20 mesh 0.90 mm 120 mesh 0.125 mm 900 mesh 0.0165 mm
22 mesh 0.95 mm 140 mesh 0.105 mm 1000 mesh 0.015 mm
24 mesh 0.80 mm 150 mesh 0.10 mm 1250 mesh 0.012 mm
26 mesh 0.70 mm 160 mesh 0.098 mm 1400 mesh 0.010 mm
28 mesh 0.63 mm 180 mesh 0.09 mm 1800 mesh 0.0085 mm
30 mesh 0.60 mm 200 mesh 0.075 mm 2000 mesh 0.0075 mm
32 mesh 0.55 mm 220 mesh 0.07 mm 2400 mesh 0.005 mm

Customization Service

  • Micron-level mesh openings

  • Choice of mesh material (PVC or Nylon)

  • Custom diameter, frame height, and color

  • Anti-static treatment or food-grade certification

  • Batch custom labels

Why Choose LinKin

  • Over 15 years of laboratory sieve manufacturing expertise

  • In-house production ensuring quality control and stable lead times

  • Compliance with ASTM and ISO standards

  • Small batch customization with fast response

  • Exported to 30+ countries including the U.S., Europe, Japan, and Southeast Asia
